3-Way Pallet Stacker - Product Brochure

1. Product Overview

The 3-Way Pallet Stacker is a specialized material handling vehicle designed for high-density narrow-aisle warehousing. Featuring a unique three-way fork mechanism that rotates 180 degrees and extends sideways, it can store and retrieve pallets from both sides of the aisle without turning the vehicle, dramatically increasing storage density and space utilization.

We offer three configurations: Stand-on (MC10/16) for standard operations, Seated (MCA16) for long-shift comfort, and Man-up Turret Truck (MCC16) for very high-bay storage up to 14.2m. All models deliver precise, efficient pallet handling in aisles as narrow as 1.6-2.0 meters.

Core Value: Increase warehouse storage capacity by up to 40%, reduce aisle width requirements, and improve picking efficiency in high-density storage environments.

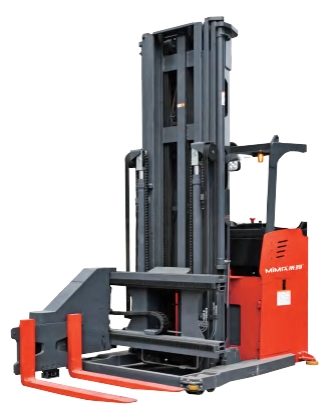

Stand-on 3-Way Pallet Stacker - MC10/16

2. Specifications and Model Selection

We offer three standard configurations covering different operation styles and lifting heights. Custom specifications are available upon request.

Selection Guide: Choose MC10/16 for standard warehouse operations with frequent entry/exit; choose MCA16 for long-shift operations requiring operator comfort; choose MCC16 for very high-bay storage above 12m where the operator needs to ascend with the load for precise placement and picking.

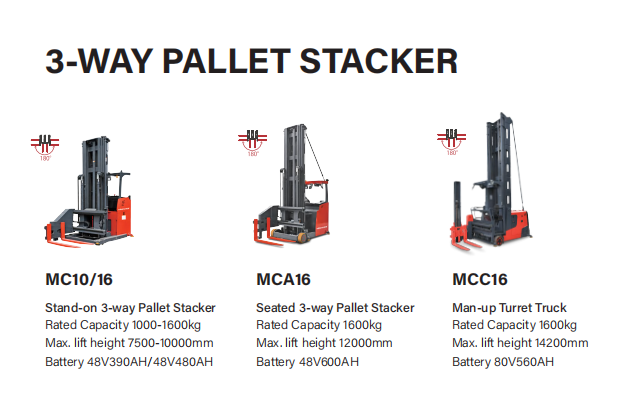

3-Way Pallet Stacker - Product Series Overview

3. Core Configuration and Craftsmanship

3.1 Mechanical Structure

• Three-Way Fork Mechanism: Patented fork carriage rotates 180 degrees left and right with side extension, enabling pallet storage from both aisle sides without vehicle turning.

• High-Strength Mast: Heavy-duty duplex/triplex mast with precision roller guides ensures stable lifting at maximum height with minimal deflection.

• Reinforced Chassis: Robust steel frame construction with low center of gravity provides excellent stability during lifting and travel.

• Polyurethane Wheels: High-quality polyurethane drive and load wheels offer low rolling resistance, quiet operation, and long service life.

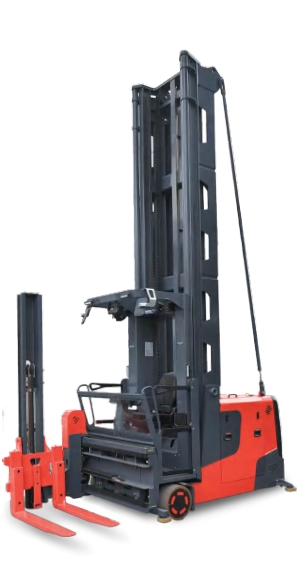

Seated/Man-up 3-Way Pallet Stacker - Extended Mast

3.2 Hydraulic System

• Precision Hydraulic Unit: Compact, high-efficiency hydraulic power pack delivers smooth, controlled lifting and lowering with proportional valve technology.

• Dual Cylinder Lifting: Symmetric hydraulic cylinders ensure synchronized mast lifting, preventing load tilt at height.

• Pressure Relief Valve: Built-in overload protection prevents lifting beyond rated capacity, protecting both operator and equipment.

• Check Valve Locking: Hydraulic check valves hold the mast position in case of power failure or hose rupture, preventing uncontrolled descent.

3.3 Electrical Control

• AC Drive System: Maintenance-free AC traction motor provides responsive acceleration, precise speed control, and regenerative braking for extended battery life.

• Integrated Control Handle: Ergonomic multi-function control handle with proportional joystick manages travel, steering, lifting, lowering, fork rotation, and side shift - all within fingertip reach.

• Chint Electrical Components: Industry-renowned Chint contactors, relays, and circuit breakers ensure reliable performance and easy maintenance.

• On-Board Charger: Built-in intelligent battery charger with overcharge protection, compatible with standard 220V/380V power outlets for convenient recharging.

Stand-on 3-Way Pallet Stacker - Front View

4. Safety Features

5. Applications

Our 3-way pallet stackers are essential equipment for high-density storage and narrow-aisle warehousing operations:

• High-Density Distribution Centers

• Automated Storage and Retrieval Systems (AS/RS)

• Cold Storage and Refrigerated Warehouses

• Pharmaceutical and Medical Supply Warehouses

• Electronics and High-Value Goods Storage

• Retail and E-commerce Fulfillment Centers

• Manufacturing Parts and Components Storage

• Third-Party Logistics (3PL) Providers

• Bonded and Customs Warehouses

• Document and Archive Storage Facilities

6. Why Choose Our 3-Way Pallet Stacker

1. Maximize Storage Density: Three-way fork operation eliminates turning radius, reducing aisle width to 1.6-2.0m and increasing storage capacity by up to 40%.

2. Three Operation Modes: Stand-on, seated, and man-up configurations match different workloads, shift durations, and storage heights.

3. Precision Handling: Proportional hydraulic and AC drive controls deliver smooth, accurate positioning even at maximum lifting height.

4. Safety First: 10-layer safety protection system including overload, tilt, high-lift travel lock, and operator presence sensing.

5. Low Noise Zero Emission: All-electric battery operation makes it ideal for indoor warehouses, cold storage, and clean environments.

6. Easy Maintenance: Modular component design with accessible service points reduces downtime and lowers total cost of ownership.

7. After-Sales Service

1-Year Whole Machine Warranty - Free replacement for any quality-related defects during the warranty period.

• Warranty Period: 1 year covering the entire machine (hydraulic system, structure, electrical components, battery).

• Response Time: 24-hour technical support response for all international customers.

• Spare Parts: Lifetime supply of original spare parts at factory cost after warranty expires.

• Operation Guidance: Detailed user manual plus remote video training for operators and maintenance personnel.

• Custom Packaging: Export-standard wooden crate packaging suitable for sea freight and long-distance transport.

Hangzhou Chengying Import And Export Co., Ltd. - Your trusted partner in material handling equipment.
