Chengying specializing in the manufacturing of glazed tile roll forming machine in China. We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
The step tiles manufactured by the Chengying Machinery step tile roll forming machine are lightweight and very durable. These tiles can resist the damage of natural disasters such as wind, fire, and earthquakes. Their texture, style, and lifespan are not found in traditional metal roof products.
We are“All-in-house source” – from raw material to the final high-precision forming machine. Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine,etc,which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines.
Features of Glazed Tile Roll Forming Machine
Glazed tile roll forming machines are most notable for their durability. Glazed tiles require almost no manual maintenance for more than a decade. This is because they are durable under various climatic conditions, and the special finish can prevent the accumulation of mold and moss. Metal roofs are lighter than concrete or clay tile roofs, more durable than asphalt tile roofs, and easier to handle than long-term corrugated roofs.
Metal roofs can now mimic other roofing materials such as wood shake, asphalt shingles, and slate, however, the metallic look often compromises the authenticity of these renditions and the overall design.
Different roof tile forming machines can produce different shapes of steel tile roof sheets in various thicknesses and colors. Steel tile roof sheets are the new substitutes for traditional clayey, concrete tiles. They are popular because of their low cost, short construction period, recyclability, and beautiful appearance. Step tiles are mainly used to make roofs for villas, theaters, exhibition centers, etc.

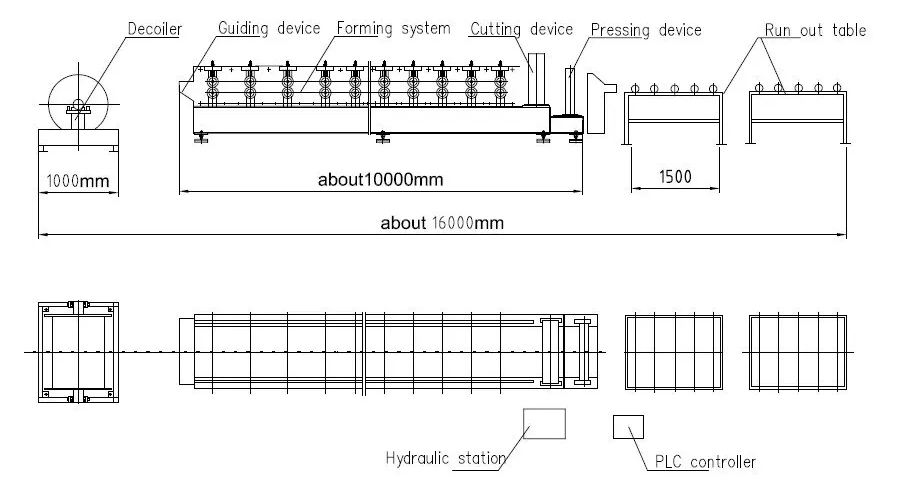

The complete glazed tile forming machine line includes:
decoiler,
roll forming system,
hydraulic cutting device,
computer controlling system,
run out tables.
Our machines are equipped with a computer controlling system.
We simply program the pieces and length we need in the computer and the glazed tile forming machine produces it automatically.
The machines are easy to operate and running stable.
Max. feeding width: 1250mm Un-powered.
Manually control steel coil inner bore shrinkage and stop.
Capacity: Max. 5Ton.
Coil ID range: 508mm.
Motor Driving, Gear chain transmission, 16 steps to form
Material Thickness: 0.5-0.6mm
Material Width：1220mm
Body frame made from 350# H type steel by welding, Sidewall thickness: 18mm
Rollers manufactured from 45#, precision machined, hard Chrome Coated
Shafts manufactured from 45#, Diameter=φ75mm, precision machined
Main Motor: 5.5KW, Frequency speed control 380V/50Hz/3Ph
Forming speed: approx.6-10m/min
Cutter frame made from high quality 20mm steel plate by welding
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor: 5.5KW
Hydraulic pressure range: 100-12Mpa
Cutting tool material: Cr12Mov, Heat treatment
Hydraulic power: 11kW with energy storage tank
Working pressure: 10-12 Mpa adjustable
Solenoid valve: 2 group
Hydraulic oil: 46 # hydraulic oil
Control the quantity and cutting length automatically
Combined with: Mitsubishi PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage: 24V

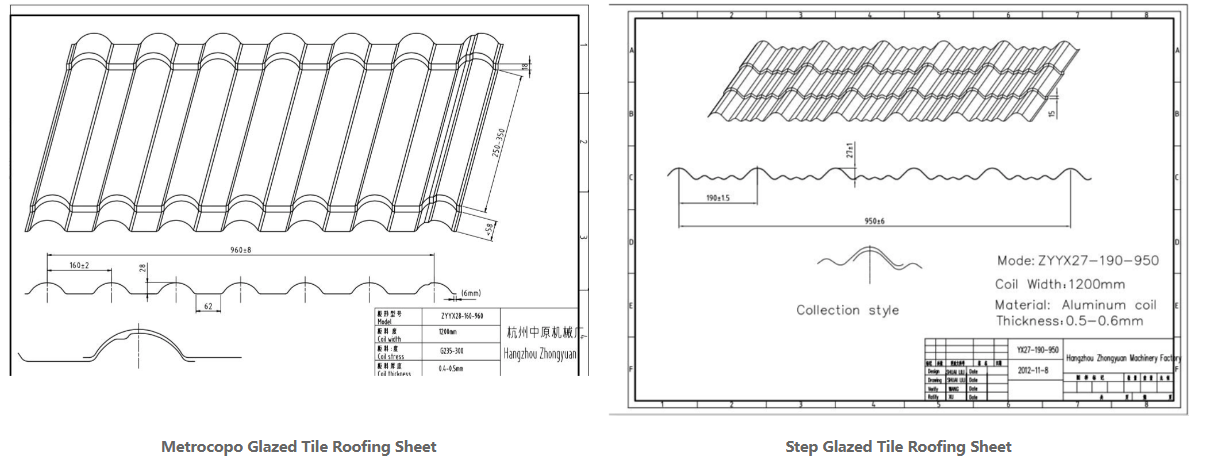

Both the two kinds of profile drawings are the glazed tile roofing sheet, and the wave height and wave distance are different.
The machine design concepts are optional as well, the machine structure has the carbon steel welded type and the vertical iron casting type.

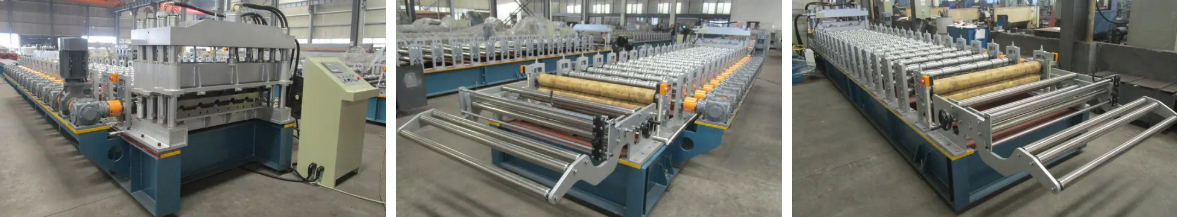

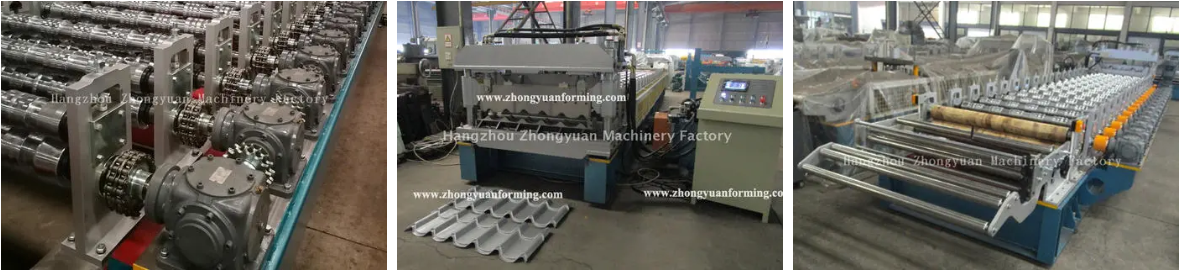

The regular type structure is the carbon steel welded type, please see the below pictures:
The Sample Products of Glazed Tile Roof Sheet Roll Forming Machine Making
Roof tiles have been used by various industries for centuries because they are easy to store, transport, and construct.
This is why metal tiles are very popular all over the world.

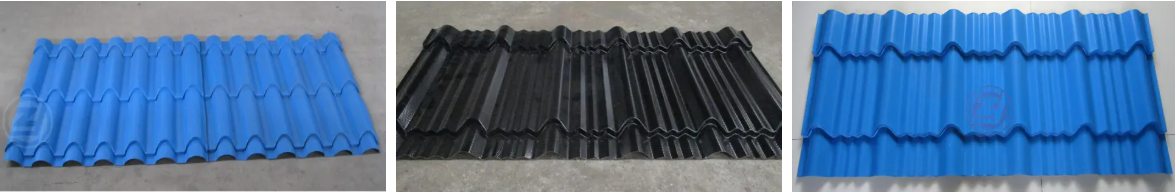

Now let's take a look at the final products produced by our two machines. Usually, the sheet is PPGI material, and GI material can also be used.
Customers can choose PPGI with different colors to make the product table more beautiful. The width of the female coil depends on the size of the product.
The Advantages of Glazed Tiles
We Are Committed to Manufacturing High-Quality Steel Tile Forming Machine
Roll Forming System
Roller material is high grade No.45 forged steel plated with hard chrome, which is processed by the digital- controlled procession.
The 40 mm thick roll-formed wall ensures a 15-year service life of the machine.
Shaft material is No.45 steel with with a diameter of 72mm, which is strong and durable. The roller shaft is processed twice with a grinder.
After grinding the shaft, the roller on the shaft can ensure the accuracy of the final sheet.
Chengying is an "All-in-house source" manufacturer from raw material to the final high-precision roll forming machine. All machines are manufactured in our factory.
