Electric Forklift Truck - Product Brochure

1. Product Overview

The Electric Forklift Truck is a versatile 4-wheel counterbalanced material handling vehicle designed for general warehouse, manufacturing, and logistics operations. Featuring a robust counterbalanced design with no outriggers, it can handle standard pallets and loads in a wide range of indoor and outdoor applications with excellent maneuverability and stability.

We offer six model series covering load capacities from 1000kg to 5000kg, with lifting heights up to 6000mm. All models are battery-electric powered, providing zero-emission, low-noise operation ideal for indoor warehouses, cold storage, and environmentally sensitive facilities.

Core Value: Versatile general-purpose material handling with zero emissions, low operating costs, and reliable performance for a wide range of indoor and outdoor applications.

2. Specifications and Model Selection

We offer six model series covering different load capacities, lifting heights, and battery configurations. Custom specifications are available upon request.

Selection Guide: Choose TKA10/15 for light-duty operations and compact spaces; choose MK15/20/TKC16/20 for standard warehouse operations; choose MK25/30 for medium-heavy loads; choose MK35/40/MK45/50 for heavy-duty applications requiring 3500kg+ capacity. All models feature 4-wheel counterbalanced design for versatile indoor and outdoor use.

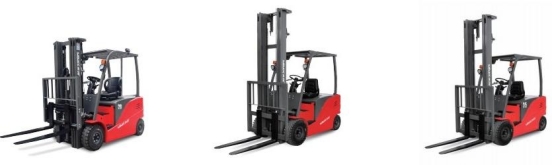

Electric Forklift Truck - MK Series Models

3. Core Configuration and Craftsmanship

3.1 Mechanical Structure

• 4-Wheel Counterbalanced Design: Robust rear counterweight provides excellent stability for lifting and carrying heavy loads without outriggers, enabling operation in tight spaces and standard pallet handling.

• High-Strength Mast: Heavy-duty duplex/triplex mast with precision roller guides ensures stable lifting up to 6m with minimal deflection and load sway at height.

• Reinforced Chassis: Robust steel frame construction with low center of gravity provides excellent stability during lifting, travel, and turning operations.

• Pneumatic/Superelastic Tires: High-quality tires suitable for both smooth warehouse floors and rough outdoor surfaces, providing excellent traction and load distribution.

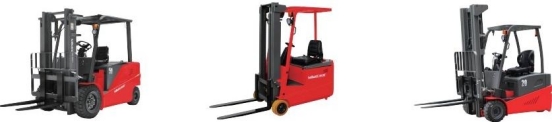

Electric Forklift Truck - Heavy Duty and Compact Models

3.2 Hydraulic System

• Precision Hydraulic Unit: Compact, high-efficiency hydraulic power pack delivers smooth, controlled lifting and lowering with proportional valve technology for precise load positioning.

• Dual Cylinder Lifting: Symmetric hydraulic cylinders ensure synchronized mast lifting, preventing load tilt at maximum height.

• Pressure Relief Valve: Built-in overload protection prevents lifting beyond rated capacity, protecting both operator and equipment.

• Check Valve Locking: Hydraulic check valves hold the mast position in case of power failure or hose rupture, preventing uncontrolled descent.

3.3 Electrical Control

• AC Drive System: Maintenance-free AC traction motor provides responsive acceleration, precise speed control, and regenerative braking for extended battery life.

• Integrated Control Console: Ergonomic operator station with multi-function control handle manages travel, steering, lifting, lowering, and fork tilt - all within fingertip reach.

• Chint Electrical Components: Industry-renowned Chint contactors, relays, and circuit breakers ensure reliable performance and easy maintenance.

• On-Board Charger: Built-in intelligent battery charger with overcharge protection, compatible with standard 220V/380V power outlets for convenient recharging.

4. Safety Features

5. Applications

Our electric forklift trucks are versatile general-purpose material handling vehicles suitable for a wide range of industries:

• Warehouses and Distribution Centers

• Manufacturing Plants and Factories

• Retail and Wholesale Operations

• Third-Party Logistics (3PL) Providers

• Cold Storage and Refrigerated Warehouses

• Food and Beverage Distribution

• Pharmaceutical and Medical Supply

• Automotive Parts and Components

• Building Materials and Construction Yards

• Bonded and Customs Warehouses

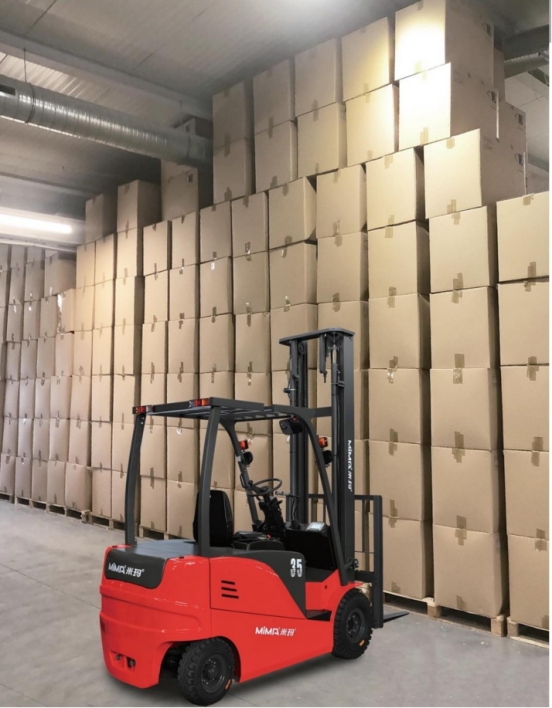

Electric Forklift Truck in Warehouse Operation

6. Why Choose Our Electric Forklift Truck

1. Versatile General-Purpose Design: 4-wheel counterbalanced design handles standard pallets and loads in a wide range of indoor and outdoor applications without specialized equipment.

2. Six Model Series: Comprehensive range covering load capacities from 1000kg to 5000kg, matching any operational requirement from light-duty to heavy-duty.

3. Zero Emission Low Noise: All-electric battery operation makes it ideal for indoor warehouses, cold storage, and environmentally sensitive facilities.

4. Precision Handling: Proportional hydraulic and AC drive controls deliver smooth, accurate load positioning with excellent maneuverability.

5. Low Operating Costs: Electric power reduces fuel costs, maintenance expenses, and downtime compared to internal combustion forklifts.

6. Easy Maintenance: Modular component design with accessible service points reduces downtime and lowers total cost of ownership.

7. After-Sales Service

1-Year Whole Machine Warranty - Free replacement for any quality-related defects during the warranty period.

• Warranty Period: 1 year covering the entire machine (hydraulic system, structure, electrical components, battery).

• Response Time: 24-hour technical support response for all international customers.

• Spare Parts: Lifetime supply of original spare parts at factory cost after warranty expires.

• Operation Guidance: Detailed user manual plus remote video training for operators and maintenance personnel.

• Custom Packaging: Export-standard wooden crate packaging suitable for sea freight and long-distance transport.

Hangzhou Chengying Import And Export Co., Ltd. - Your trusted partner in material handling equipment.
