Articulated Forklift - Product Brochure

1. Product Overview

The Articulated Forklift is a specialized narrow-aisle material handling vehicle featuring a unique articulated chassis design that allows the rear section to pivot independently, enabling operation in aisles as narrow as 1.6-1.8 meters. This innovative design combines the versatility of a counterbalance forklift with the space efficiency of a reach truck, making it ideal for high-density warehousing.

Model MJ20 delivers a rated capacity of 2000kg with a maximum lifting height of 12.5 meters. Powered by a high-capacity battery (48V 900AH or 80V 500AH), it provides extended shift operation with zero emissions and low noise, suitable for both indoor and outdoor applications.

Core Value: Reduce aisle width requirements by up to 30%, increase warehouse storage density, and handle both indoor storage and outdoor loading operations with a single versatile machine.

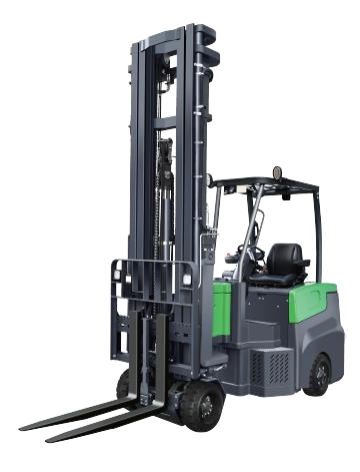

Articulated Forklift - MJ20

2. Specifications and Model Selection

The MJ20 articulated forklift is available in two battery configurations to match different operational requirements. Custom specifications are available upon request.

Selection Guide: Choose the 48V 900AH configuration for standard indoor warehouse operations requiring long runtime between charges; choose the 80V 500AH configuration for high-intensity operations involving frequent lifting, outdoor use, or heavier duty cycles requiring higher voltage performance.

3. Core Configuration and Craftsmanship

3.1 Mechanical Structure

• Articulated Chassis: Patented central articulation joint allows the rear section to pivot independently, enabling tight turning in narrow aisles while maintaining stability during lifting and travel.

• High-Strength Mast: Heavy-duty duplex/triplex mast with precision roller guides ensures stable lifting up to 12.5m with minimal deflection and load sway.

• Reinforced Frame: Robust steel chassis construction with low center of gravity provides excellent stability for both indoor storage and outdoor loading operations.

• Pneumatic/Superelastic Tires: High-quality tires suitable for both smooth warehouse floors and rough outdoor surfaces, providing excellent traction and load distribution.

3.2 Hydraulic System

• Precision Hydraulic Unit: Compact, high-efficiency hydraulic power pack delivers smooth, controlled lifting and lowering with proportional valve technology for precise load positioning.

• Dual Cylinder Lifting: Symmetric hydraulic cylinders ensure synchronized mast lifting, preventing load tilt at maximum height.

• Pressure Relief Valve: Built-in overload protection prevents lifting beyond rated capacity, protecting both operator and equipment.

• Check Valve Locking: Hydraulic check valves hold the mast position in case of power failure or hose rupture, preventing uncontrolled descent.

3.3 Electrical Control

• AC Drive System: Maintenance-free AC traction motor provides responsive acceleration, precise speed control, and regenerative braking for extended battery life.

• Integrated Control Console: Ergonomic seated operator station with multi-function control handle manages travel, steering, lifting, lowering, and fork tilt - all within fingertip reach.

• Chint Electrical Components: Industry-renowned Chint contactors, relays, and circuit breakers ensure reliable performance and easy maintenance.

• On-Board Charger: Built-in intelligent battery charger with overcharge protection, compatible with standard 220V/380V power outlets for convenient recharging.

4. Safety Features

5. Applications

Our articulated forklift is a versatile solution for both narrow-aisle indoor storage and outdoor loading operations:

• High-Density Distribution Centers

• Retail and Wholesale Warehouses

• Manufacturing Plants and Factories

• Third-Party Logistics (3PL) Providers

• Cold Storage and Refrigerated Warehouses

• Building Materials and Timber Yards

• Automotive Parts and Components Storage

• Food and Beverage Distribution

• Pharmaceutical and Medical Supply Warehouses

• Bonded and Customs Warehouses

6. Why Choose Our Articulated Forklift

1. Dual-Purpose Versatility: Combines narrow-aisle indoor storage capability with outdoor loading dock performance - one machine replaces both a reach truck and a counterbalance forklift.

2. Maximize Storage Density: Articulated chassis design reduces required aisle width to 1.6-1.8m, increasing warehouse storage capacity by up to 30%.

3. High Lift Capacity: 2000kg rated capacity with 12.5m maximum lifting height handles heavy pallet loads at elevated storage positions.

4. Safety First: 10-layer safety protection system including overload, tilt, high-lift travel lock, and operator presence sensing.

5. Low Noise Zero Emission: All-electric battery operation makes it ideal for indoor warehouses, cold storage, and environmentally sensitive facilities.

6. Easy Maintenance: Modular component design with accessible service points reduces downtime and lowers total cost of ownership.

7. After-Sales Service

1-Year Whole Machine Warranty - Free replacement for any quality-related defects during the warranty period.

• Warranty Period: 1 year covering the entire machine (hydraulic system, structure, electrical components, battery).

• Response Time: 24-hour technical support response for all international customers.

• Spare Parts: Lifetime supply of original spare parts at factory cost after warranty expires.

• Operation Guidance: Detailed user manual plus remote video training for operators and maintenance personnel.

• Custom Packaging: Export-standard wooden crate packaging suitable for sea freight and long-distance transport.

Hangzhou Chengying Import And Export Co., Ltd. - Your trusted partner in material handling equipment.
