AGV Forklift Body - Product Brochure

1. Product Overview

The AGV Forklift Body is a specialized automated guided vehicle chassis platform designed for integration with AGV navigation systems, sensors, and control systems. Featuring a robust mechanical structure, electric drive, and hydraulic lift system, it provides a reliable foundation for building fully autonomous material handling solutions for warehouses, manufacturing plants, and logistics facilities.

We offer three product series: AGV Pallet Truck Body (MEV20, ME20/25, ME30/40/50/60) for horizontal pallet transport, AGV Pallet Stacker Body (MB14, MB15/20) for low-level stacking, and AGV Stacker Body (MBV15/20, MBV20PRO/25PRO) for high-level stacking. All models are battery-electric powered, providing zero-emission, low-noise operation ideal for indoor automated logistics environments.

Core Value: Reliable, customizable AGV chassis platform enabling rapid development and deployment of autonomous material handling solutions, reducing development time and integration costs for AGV system integrators.

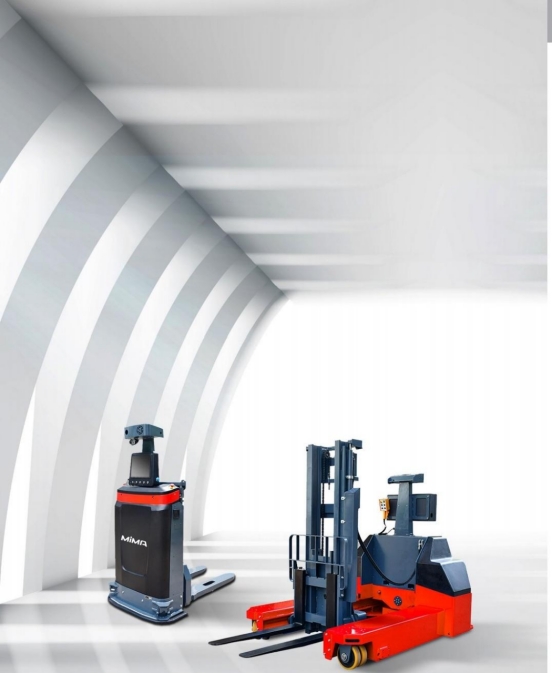

AGV Forklift Bodies in Modern Facility

2. Specifications and Model Selection

We offer three product series covering different material handling functions and load capacities. Custom specifications are available upon request.

2.1 AGV Pallet Truck Body

2.2 AGV Pallet Stacker Body

2.3 AGV Stacker Body

Selection Guide: Choose AGV Pallet Truck Body for horizontal transport and loading/unloading; choose AGV Pallet Stacker Body for low to medium-level stacking; choose AGV Stacker Body for high-level stacking requiring operator platform. All models are designed for easy integration with AGV navigation and control systems.

3. Core Configuration and Craftsmanship

3.1 Mechanical Structure

• Robust Chassis Frame: Heavy-duty steel frame construction with low center of gravity provides excellent stability and durability for autonomous operation in demanding industrial environments.

• High-Strength Mast (Stacker Models): Heavy-duty duplex/triplex mast with precision roller guides ensures stable lifting up to 5m with minimal deflection for precise pallet placement.

• Heavy-Duty Forks: High-strength steel forks with adjustable width accommodate various pallet sizes and load types.

• Integration-Friendly Design: Modular structure with预留 mounting points for AGV navigation sensors, cameras, LiDAR, and control systems, enabling rapid integration.

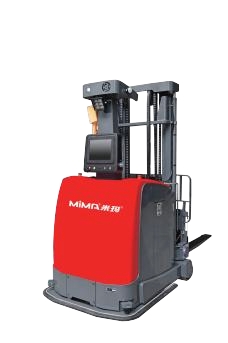

AGV Stacker Body - MBV15/20

3.2 Drive and Power System

• AC Drive Motor: Maintenance-free AC traction motor provides high torque, responsive acceleration, precise speed control, and regenerative braking for extended battery life.

• High-Capacity Battery: Large-capacity lead-acid or lithium battery provides extended runtime for continuous autonomous operation, with quick and easy battery replacement for multi-shift facilities.

• Intelligent Motor Controller: Advanced AC motor controller delivers smooth, efficient power delivery with programmable speed and acceleration profiles optimized for AGV operation.

• Regenerative Braking: Energy recovery during braking and deceleration extends battery life and reduces operating costs.

3.3 Hydraulic and Control System

• Integrated Hydraulic Power Unit: Compact, high-efficiency hydraulic pump delivers smooth, controlled lifting and lowering with reliable performance for autonomous operation.

• Pressure Relief Valve: Built-in overload protection prevents lifting beyond rated capacity, protecting both equipment and loads.

• Check Valve Locking: Hydraulic check valves hold the mast and fork position in case of power failure or hose rupture, preventing uncontrolled descent.

• AGV Integration Interface: Standardized electrical and communication interfaces (CAN bus, IO ports) enable seamless integration with various AGV navigation and control systems.

4. Safety Features

5. Applications

Our AGV forklift bodies are ideal chassis platforms for AGV system integrators and end-users building autonomous material handling solutions:

• Warehouses and Distribution Centers

• Manufacturing Plants and Assembly Lines

• E-commerce Fulfillment Centers

• Third-Party Logistics (3PL) Providers

• Automotive Manufacturing and Parts Transport

• Food and Beverage Production and Distribution

• Pharmaceutical and Medical Supply

• Retail and Wholesale Operations

• Postal and Parcel Sorting Facilities

• Bonded and Customs Warehouses

AGV Stacker Body - MBV20PRO/25PRO

6. Why Choose Our AGV Forklift Body

1. Three Product Series: Comprehensive range covering AGV pallet truck, AGV pallet stacker, and AGV stacker bodies, matching any material handling requirement from horizontal transport to high-level stacking.

2. Integration-Friendly Design: Modular structure with预留 mounting points and standardized interfaces (CAN bus, IO ports) enables rapid integration with various AGV navigation and control systems.

3. Reliable Industrial Quality: Heavy-duty steel construction, AC drive system, and hydraulic lift system provide reliable performance in demanding industrial environments.

4. Zero Emission Low Noise: All-electric battery operation makes it ideal for indoor automated logistics, clean environments, and noise-sensitive facilities.

5. Extended Battery Life: High-capacity battery with regenerative braking provides long runtime for continuous autonomous operation, with quick battery replacement for multi-shift operations.

6. Comprehensive Safety Features: 8-layer safety system including emergency stop, overload protection, automatic parking brake, and AGV safety sensor integration points ensures safe autonomous operation.

7. After-Sales Service

1-Year Whole Machine Warranty - Free replacement for any quality-related defects during the warranty period.

• Warranty Period: 1 year covering the entire machine (drive system, structure, hydraulic system, electrical components, battery).

• Response Time: 24-hour technical support response for all international customers and AGV system integrators.

• Spare Parts: Lifetime supply of original spare parts at factory cost after warranty expires.

• Integration Support: Technical documentation and remote support for AGV navigation and control system integration.

• Custom Packaging: Export-standard wooden crate packaging suitable for sea freight and long-distance transport.
