Electric Reach Truck - Product Brochure

1. Product Overview

The Electric Reach Truck is a specialized material handling vehicle designed for high-bay warehouse storage and narrow-aisle operations. Featuring a unique reach mechanism that allows the mast and forks to extend forward, it enables efficient storage and retrieval of pallets at heights up to 8 meters in aisles as narrow as 2.5-3.0 meters.

We offer five model series covering both stand-on and seated configurations, with load capacities from 1200kg to 3000kg and lifting heights up to 8000mm. All models are battery-electric powered, providing zero-emission, low-noise operation ideal for indoor warehouses and distribution centers.

Core Value: Maximize vertical storage space utilization, operate in narrow aisles, and handle high-bay pallet storage with precision and safety.

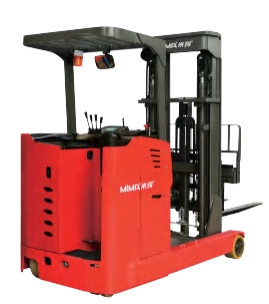

Stand-on Reach Truck - MF12

2. Specifications and Model Selection

We offer five model series covering different load capacities, lifting heights, and operator configurations. Custom specifications are available upon request.

Selection Guide: Choose MF12/MF15D for light-duty operations and lower storage heights; choose MF15/20 for standard warehouse operations requiring 7.5-8m lifting; choose MF25/30 for heavy loads up to 3000kg; choose MFZ16/20 seated model for long-shift operations requiring operator comfort and high-bay storage.

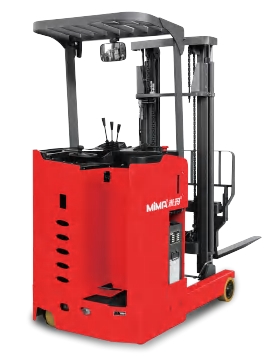

Stand-on Reach Truck - MF15D

3. Core Configuration and Craftsmanship

3.1 Mechanical Structure

• Reach Mechanism: Patented mast reach system allows the mast and forks to extend forward, enabling pallet storage and retrieval in narrow aisles without repositioning the vehicle.

• High-Strength Mast: Heavy-duty duplex/triplex mast with precision roller guides ensures stable lifting up to 8m with minimal deflection and load sway at height.

• Reinforced Chassis: Robust steel frame construction with low center of gravity provides excellent stability during lifting, reaching, and travel operations.

• Polyurethane Wheels: High-quality polyurethane drive and load wheels offer low rolling resistance, quiet operation, and long service life on smooth warehouse floors.

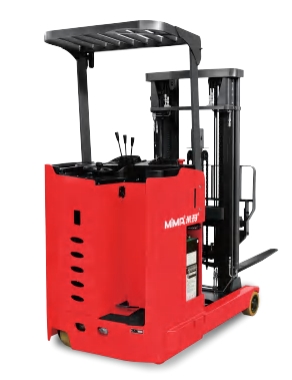

Stand-on Reach Truck - MF15/20

3.2 Hydraulic System

• Precision Hydraulic Unit: Compact, high-efficiency hydraulic power pack delivers smooth, controlled lifting, lowering, and reach operations with proportional valve technology.

• Dual Cylinder Lifting: Symmetric hydraulic cylinders ensure synchronized mast lifting, preventing load tilt at maximum height.

• Pressure Relief Valve: Built-in overload protection prevents lifting beyond rated capacity, protecting both operator and equipment.

• Check Valve Locking: Hydraulic check valves hold the mast position in case of power failure or hose rupture, preventing uncontrolled descent.

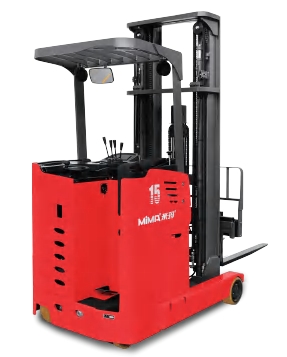

Stand-on Reach Truck - MF25/30

3.3 Electrical Control

• AC Drive System: Maintenance-free AC traction motor provides responsive acceleration, precise speed control, and regenerative braking for extended battery life.

• Integrated Control Handle: Ergonomic multi-function control handle manages travel, steering, lifting, lowering, and reach operations - all within fingertip reach.

• Chint Electrical Components: Industry-renowned Chint contactors, relays, and circuit breakers ensure reliable performance and easy maintenance.

• On-Board Charger: Built-in intelligent battery charger with overcharge protection, compatible with standard 220V/380V power outlets for convenient recharging.

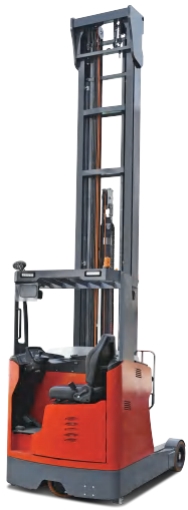

Seated Reach Truck - MFZ16/20 (Extended Mast)

4. Safety Features

5. Applications

Our electric reach trucks are essential equipment for high-bay storage and narrow-aisle warehouse operations:

• High-Density Distribution Centers

• Retail and E-commerce Fulfillment Centers

• Third-Party Logistics (3PL) Providers

• Cold Storage and Refrigerated Warehouses

• Pharmaceutical and Medical Supply Warehouses

• Electronics and High-Value Goods Storage

• Automotive Parts and Components Warehouses

• Food and Beverage Distribution

• Bonded and Customs Warehouses

• Manufacturing Plants and Factories

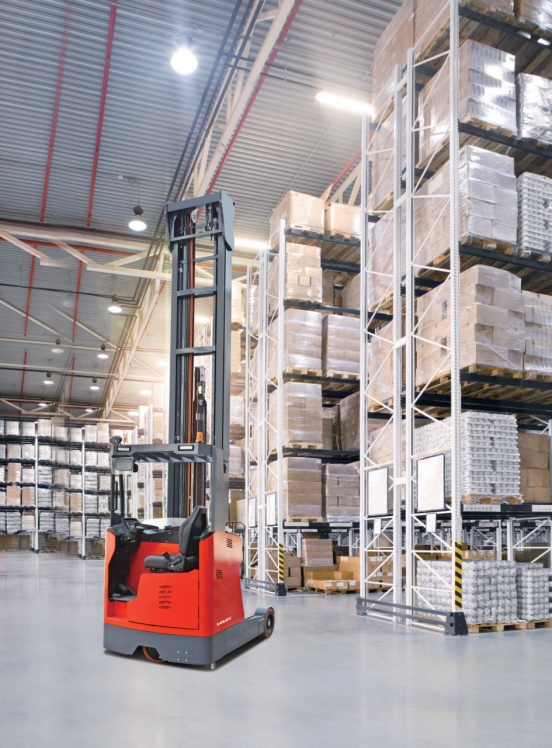

Electric Reach Truck in Warehouse Operation

6. Why Choose Our Electric Reach Truck

1. High-Bay Storage Capability: Reach mechanism enables pallet storage and retrieval at heights up to 8 meters, maximizing vertical warehouse space utilization.

2. Narrow Aisle Operation: Compact design with reach mechanism allows operation in aisles as narrow as 2.5-3.0 meters, increasing storage density.

3. Five Model Series: Comprehensive range covering stand-on and seated configurations, load capacities from 1200kg to 3000kg, and lifting heights up to 8000mm.

4. Precision Handling: Proportional hydraulic and AC drive controls deliver smooth, accurate load positioning even at maximum lifting height.

5. Low Noise Zero Emission: All-electric battery operation makes it ideal for indoor warehouses, cold storage, and environmentally sensitive facilities.

6. Easy Maintenance: Modular component design with accessible service points reduces downtime and lowers total cost of ownership.

7. After-Sales Service

1-Year Whole Machine Warranty - Free replacement for any quality-related defects during the warranty period.

• Warranty Period: 1 year covering the entire machine (hydraulic system, structure, electrical components, battery).

• Response Time: 24-hour technical support response for all international customers.

• Spare Parts: Lifetime supply of original spare parts at factory cost after warranty expires.

• Operation Guidance: Detailed user manual plus remote video training for operators and maintenance personnel.

• Custom Packaging: Export-standard wooden crate packaging suitable for sea freight and long-distance transport.

Hangzhou Chengying Import And Export Co., Ltd. - Your trusted partner in material handling equipment.
