I. Product Overview

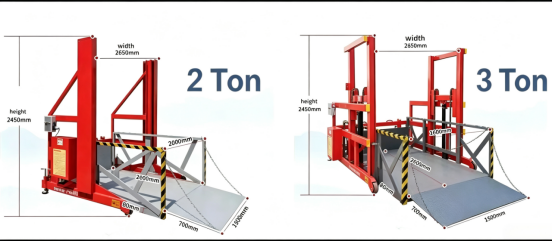

The Mobile Hydraulic Loading Platform is an efficient and safe cargo loading equipment widely used in warehouses, logistics centers, factory workshops and other locations. Featuring a hydraulic drive system combined with high-strength steel structure design, it achieves a lifting height of 1.7 meters, easily solving the height difference between trucks and ground and significantly improving loading efficiency.
Available in 2-ton and 3-ton load capacities with multiple platform size options to meet different loading scenarios. The entire machine is built with robotic welding technology for stable and reliable quality, making it the ideal choice for enterprises to improve logistics efficiency and reduce labor costs.
Core Values
• High Efficiency — Smooth and fast hydraulic lifting, improves loading efficiency by over 60%
• Safe & Reliable — Multiple safety protection devices, Chint electrical components, million-dollar insurance coverage
• Flexible Mobility — Equipped with swivel casters, movable to different loading positions anytime
• Durable & Sturdy — Q355B high-strength steel, robotic welding, 2-year full machine warranty
II. Product Specifications
2.1 Basic Parameters (SYYD2-1.7 as Reference)
Item | Specification |
Model | SYYD2-1.7 |
Load Capacity | 2000kg (3000kg option available) |
Max. Lifting Height | 1.7m |
Platform Size | 1600mm × 2000mm (2000×2000mm option available) |
Overall Dimensions | 2250mm × 2260mm × 2450mm |
Power Supply | 220V / 380V (optional) |
Control Method | Wireless Remote + Control Box Button (Dual Control) |
Mobility | 2 Fixed + 2 Swivel Casters (Cast Iron Core with Polyurethane) |

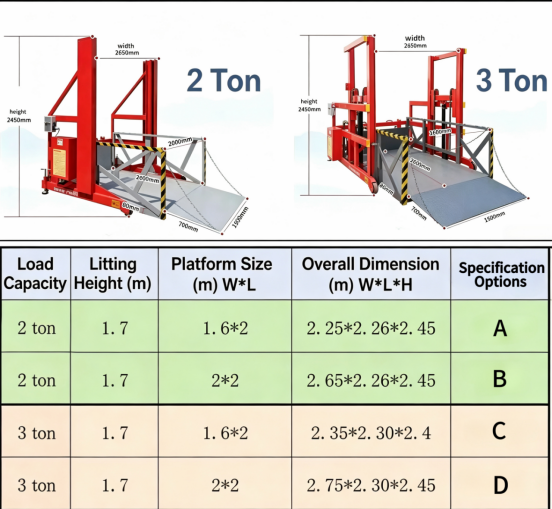

2.2 Model Selection Table
Four standard configurations available to meet different load capacity and platform size requirements:
Model | Capacity | Height | Platform (W×L) | Dimensions (W×L×H) | Type |
Model A | 2 Ton | 1.7m | 1.6m × 2.0m | 2.25×2.26×2.45m | Standard |
Model B | 2 Ton | 1.7m | 2.0m × 2.0m | 2.65×2.26×2.45m | Wide Platform |
Model C | 3 Ton | 1.7m | 1.6m × 2.0m | 2.35×2.30×2.40m | Heavy Duty |
Model D | 3 Ton | 1.7m | 2.0m × 2.0m | 2.75×2.30×2.45m | Heavy Duty Wide |
III. Core Configuration Details
3.1 Mechanical Structure
The entire machine is manufactured with high-strength steel, with reinforced design at critical positions to ensure no deformation under long-term heavy load. Welding uses imported Japanese Fanuc welding robots — 90% of all welds are robotically applied for full, uniform beads and zero cracking risks.
Component | Specification | Advantage |
Platform Deck | 3mm Checkered Plate | Thickened wear-resistant design with excellent anti-slip performance |
Platform Undercarriage | 40×80×2mm Rectangular Tube | Densely reinforced square tubes for high capacity and strong stability |
Arm Support | 60×120×3.5mm + 50×100×2.5mm Rectangular Tubes | Prevents platform deformation, reduces sway, improves lifting stability |
Guide Rail | 5mm C-Channel Steel (Q355B) | Q355B high-strength C-channel for more stable support |
Lifting Plate | 12mm Steel Plate | One-piece high-precision cutting, thickened design for safer lifting |
Casters | 2 Fixed + 2 Swivel Casters | Cast iron core with polyurethane coating, wear-resistant and flexible |
Support Legs | 30mm Screw Jack | Hot-dip galvanized, more durable and corrosion-resistant |
Chains | Heat-treated Chains × 2 | Single chain tensile capacity up to 3 tons, high safety factor, dual protection |
Sliders | Polymer Nylon Sliders | More wear-resistant, larger contact surface, smoother operation |
3.2 Electrical Control System
The electrical system uses Chint Group components throughout, equipped with aviation-grade plugs and featuring multiple safety functions including overheat/overload protection and phase-loss protection to maximize personnel and equipment safety.
Component | Specification | Advantage |
Power Supply Voltage | 220V / 380V | Equipped with aviation plug — aviation industry standard, safer and more reliable |

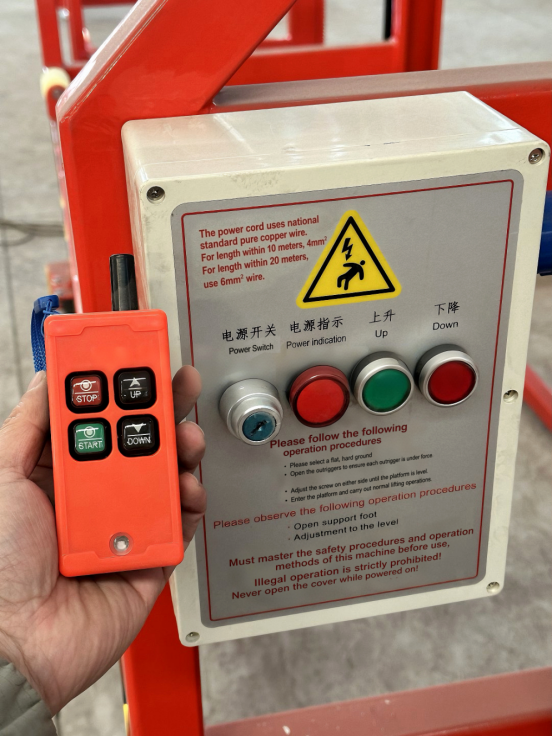

Control Method | Wireless Remote + Control Box Button | Dual control buttons for easy lifting; anti-interference wireless remote |
Electrical Components | Chint Group | Well-known brand, stable quality, with overload and phase-loss protection |
Limit Switch | Chint Group | Precise positioning, prevents over-travel, comprehensive safety protection |
3.3 Hydraulic System
The hydraulic power unit uses pure copper industrial motors for strong power without burnout. Equipped with emergency lowering valve, overflow valve, throttle valve and oil filter for multi-layer protection. Hydraulic cylinders feature high-strength honed tubes with Japanese imported seals for exceptional durability and zero oil leakage.
Component | Specification | Advantage |
Power Motor | Pure Copper Industrial Motor | Strong power, no burnout; 10,000x compensation guarantee if not pure copper |
Emergency Lowering Valve | Standard | Manual lowering during power outage for emergency situations |
Overflow Valve | Standard | Prevents excessive pressure during upward movement, provides overload protection |
Hydraulic Cylinders | Φ63/40 × 2 Units | High-strength honed tubes, Japanese imported seals, super durable, leak-proof |
Hydraulic Hoses | 2-10-43MPa | Double-layer steel wire braided explosion-proof high-pressure hoses, safe and reliable |
Hydraulic Oil | Grade 32, Great Wall Brand | Anti-wear, anti-freeze, impurity-free, longer service life |
IV. Craftsmanship & Quality Assurance
4.1 Welding Process
Uses imported Japanese Fanuc welding robots for automated welding — 90% of all welds are robotically applied. Weld beads are full and uniform with strong consistency, no cracking risks, and structural strength far exceeds manual welding standards.
4.2 Surface Treatment Process
The entire machine goes through three surface treatment processes to ensure excellent appearance and corrosion resistance:
• Step 1: Shot Blasting — Removes surface oxide layer, enhances coating adhesion
• Step 2: Precision Hand Polishing — Removes burrs, creates a smooth flat surface
• Step 3: Electrostatic Powder Coating + High-temperature Baking — Bright finish, strong adhesion, no fading or rusting
4.3 Buyer's Guide: What to Avoid
Some manufacturers cut costs by using low-quality copper-clad aluminum motors from unknown brands — these have short service life and burn out easily. We guarantee that all hydraulic power unit motors are 100% pure copper, with a 10,000x counterfeit compensation promise — buy with confidence and peace of mind.
V. After-sales Service & Warranty
5.1 Warranty Commitment
• Industry-leading 2-year full machine warranty — direct replacement for any issues, concierge-level service for worry-free ownership
• Million-dollar insurance coverage on every unit for added peace of mind
5.2 Included Documentation
• Product Certificate of Conformity
• Operation Manual
• Insurance Card
• Inspection Report
• Warranty Card
5.3 Safety Protection Features
• Overheat & Overload Protection — Automatic shutdown when motor temperature exceeds limits
• Phase-Loss Protection — Automatic power cut-off during phase loss, prevents motor burnout
• Travel Limit Protection — Auto-stop at full lift/lower positions, prevents over-travel
• Overflow Overload Protection — Automatic pressure relief during overload conditions
• Emergency Manual Lowering — Manual lowering for unloading even during power outages
VI. Application Scenarios
The Mobile Hydraulic Loading Platform is suitable for all locations requiring truck loading and unloading, including but not limited to:
• E-commerce Warehouses & Logistics Centers — Fast parcel loading and unloading
• Factory Production Workshops — Raw material and finished goods loading & transfer
• Wholesale Markets & Cold Storage — Efficient bulk cargo handling
• Third-Party Logistics (3PL) Warehouses — Flexible adaptation to multiple vehicle types
• Distribution Centers & Transfer Stations — Improves turnover efficiency
• SMEs without Fixed Loading Docks — Low-cost dock-level functionality
VII. Why Choose Us
Quality Assurance
• Robotic welding process for consistent, reliable quality
• Q355B high-strength steel for a sturdy, durable structure
• Pure copper motor with 10,000x guarantee — no inferior copper-clad aluminum
Safe & Reliable
• Chint electrical components with multiple safety protections
• Dual chain lifting system for double safety guarantee
• Million-dollar insurance coverage — operate with complete confidence
Service Guarantee
• 1-year full machine warranty, direct replacement for any issues
• Complete documentation package — hassle-free acceptance inspection
• Professional technical support with rapid response
Thank You for Your Attention and Trust
We look forward to partnering with you for an efficient logistics future
