Electric Order Picker - Product Brochure

1. Product Overview

The Electric Order Picker is a specialized material handling vehicle designed for order picking and stock replenishment in high-density warehouses and distribution centers. Featuring an elevating operator platform that rises with the mast, it allows the operator to directly access goods at various storage levels, significantly improving picking efficiency and accuracy.

We offer two model series: MHA10 for low-level order picking up to 6 meters, and MHA13 for high-level order picking up to 9.5 meters. Both models are battery-electric powered, providing zero-emission, low-noise operation ideal for indoor warehouses, e-commerce fulfillment centers, and retail distribution operations.

Core Value: Dramatically improve order picking efficiency and accuracy, reduce labor costs, and maximize vertical storage space utilization in high-density warehouse environments.

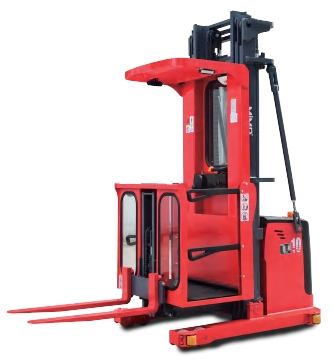

Low-Level Order Picker - MHA10

2. Specifications and Model Selection

We offer two model series covering different picking heights and load capacities. Custom specifications are available upon request.

Selection Guide: Choose MHA10 for standard warehouse operations requiring order picking up to 6 meters, ideal for e-commerce fulfillment centers and retail distribution; choose MHA13 for high-density warehouses with very high-bay storage requiring picking up to 9.5 meters, maximizing vertical storage utilization.

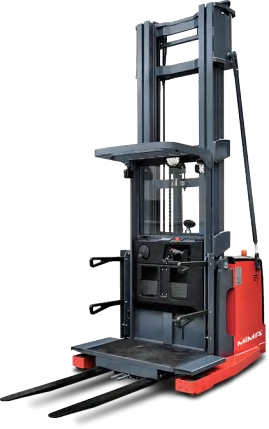

High-Level Order Picker - MHA13

3. Core Configuration and Craftsmanship

3.1 Mechanical Structure

• Elevating Operator Platform: Integrated operator cabin or platform that rises synchronously with the mast, allowing direct access to goods at various storage levels for efficient order picking.

• High-Strength Mast: Heavy-duty duplex/triplex mast with precision roller guides ensures stable lifting up to 9.5m with minimal deflection and platform sway at height.

• Reinforced Chassis: Robust steel frame construction with low center of gravity provides excellent stability during lifting, travel, and picking operations.

• Safety Guardrails: Full-height guardrails with mid-rails and toe boards surround the operator platform, preventing falls during elevated picking operations.

3.2 Hydraulic System

• Precision Hydraulic Power Unit: Compact, high-efficiency hydraulic pump delivers smooth, controlled lifting and lowering of both mast and operator platform with reliable performance.

• Dual Cylinder Lifting: Symmetric hydraulic cylinders ensure synchronized mast and platform lifting, preventing tilt at maximum height.

• Pressure Relief Valve: Built-in overload protection prevents lifting beyond rated capacity, protecting both operator and equipment.

• Check Valve Locking: Hydraulic check valves hold the mast and platform position in case of power failure or hose rupture, preventing uncontrolled descent.

3.3 Electrical Control

• AC Drive System: Maintenance-free AC traction motor provides responsive acceleration, precise speed control, and regenerative braking for extended battery life.

• Integrated Control Console: Ergonomic operator station with multi-function control handle manages travel direction, speed, lifting, lowering, and horn - all within fingertip reach.

• Chint Electrical Components: Industry-renowned Chint contactors, relays, and circuit breakers ensure reliable performance and easy maintenance.

• On-Board Charger: Built-in intelligent battery charger with overcharge protection, compatible with standard 220V power outlets for convenient recharging.

4. Safety Features

5. Applications

Our electric order pickers are essential equipment for efficient order picking and stock replenishment in high-density warehouse environments:

• E-commerce Fulfillment Centers

• Retail Distribution Centers

• Warehouses and Logistics Hubs

• Third-Party Logistics (3PL) Providers

• Cold Storage and Refrigerated Warehouses

• Pharmaceutical and Medical Supply

• Electronics and High-Value Goods Storage

• Food and Beverage Distribution

• Automotive Parts and Components

• Bonded and Customs Warehouses

6. Why Choose Our Electric Order Picker

1. Elevating Operator Platform: Operator rises synchronously with the mast, enabling direct access to goods at any storage level for fast, accurate order picking.

2. Two Model Series: MHA10 for low-level picking up to 6m and MHA13 for high-level picking up to 9.5m, matching any warehouse storage height requirement.

3. Maximize Vertical Storage: High-level order picking capability enables full utilization of vertical warehouse space, increasing storage density and capacity.

4. Improve Picking Efficiency: Direct access to goods at storage level eliminates ladder use and reduces travel time, dramatically improving picking throughput and accuracy.

5. Zero Emission Low Noise: All-electric battery operation makes it ideal for indoor warehouses, cold storage, and environmentally sensitive facilities.

6. Comprehensive Safety Protection: 10-layer safety system including guardrails, overload protection, tilt protection, and emergency lowering ensures operator safety at height.

7. After-Sales Service

1-Year Whole Machine Warranty - Free replacement for any quality-related defects during the warranty period.

• Warranty Period: 1 year covering the entire machine (hydraulic system, structure, electrical components, battery).

• Response Time: 24-hour technical support response for all international customers.

• Spare Parts: Lifetime supply of original spare parts at factory cost after warranty expires.

• Operation Guidance: Detailed user manual plus remote video training for operators and maintenance personnel.

• Custom Packaging: Export-standard wooden crate packaging suitable for sea freight and long-distance transport.

Hangzhou Chengying Import And Export Co., Ltd. - Your trusted partner in material handling equipment.
