Electric Pallet Truck - Product Brochure

1. Product Overview

The Electric Pallet Truck is a versatile material handling vehicle designed for horizontal pallet transport, loading, unloading, and short-distance logistics operations. Featuring an electric drive and hydraulic lift system, it enables efficient movement of palletized goods with minimal physical effort, significantly improving warehouse and logistics efficiency.

We offer six model series covering walkie, stand-on, and seated configurations, with load capacities from 2000kg to 10000kg. All models are battery-electric powered, providing zero-emission, low-noise operation ideal for warehouses, distribution centers, manufacturing facilities, and retail operations.

Core Value: Efficient horizontal pallet transport with zero emissions, reduced labor costs, and reliable performance for a wide range of indoor material handling applications.

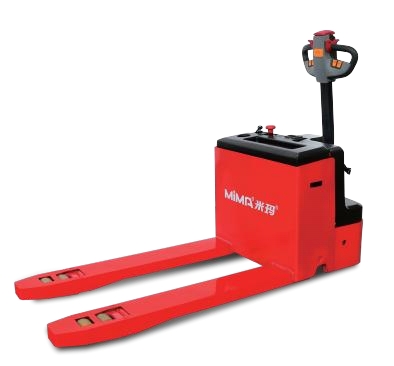

Walkie Electric Pallet Truck - MEW20

2. Specifications and Model Selection

We offer six model series covering different operation styles, load capacities, and battery configurations. Custom specifications are available upon request.

Selection Guide: Choose MEW20 for light-duty walk-behind operations and tight spaces; choose ME20/25/ME30/40 for standard warehouse operations requiring stand-on platform; choose ME60/80 for heavy loads up to 8000kg; choose MEB60/ME100 seated models for long-shift operations and very heavy loads up to 10000kg.

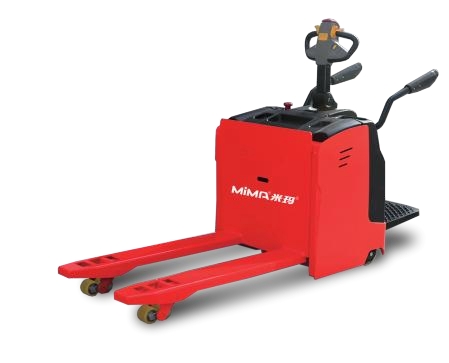

Stand-on Electric Pallet Truck - ME20/25

3. Core Configuration and Craftsmanship

3.1 Mechanical Structure

• Reinforced Fork Frame: Heavy-duty steel fork frame with precision welding provides excellent strength and durability for heavy load handling.

• Hydraulic Lift System: Integrated hydraulic pump and cylinder provide smooth, controlled lifting and lowering of forks for efficient pallet handling.

• Drive Wheel Assembly: High-quality polyurethane or rubber drive wheel provides excellent traction, low rolling resistance, and long service life on warehouse floors.

• Stable Chassis Design: Low center of gravity and robust frame construction ensure stability during acceleration, braking, and load transport.

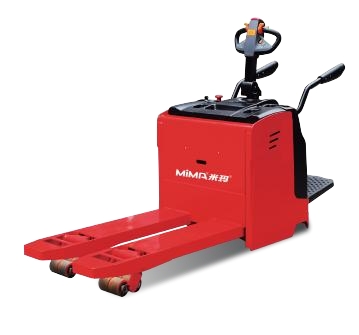

Stand-on Electric Pallet Truck - ME30/40

3.2 Hydraulic System

• Integrated Hydraulic Power Unit: Compact, high-efficiency hydraulic pump delivers smooth, controlled lifting and lowering with reliable performance.

• Pressure Relief Valve: Built-in overload protection prevents lifting beyond rated capacity, protecting both operator and equipment.

• Check Valve Locking: Hydraulic check valves hold the fork position in case of power failure or hose rupture, preventing uncontrolled descent.

• Manual Lowering Valve: Emergency descent valve allows controlled lowering of forks in case of power failure.

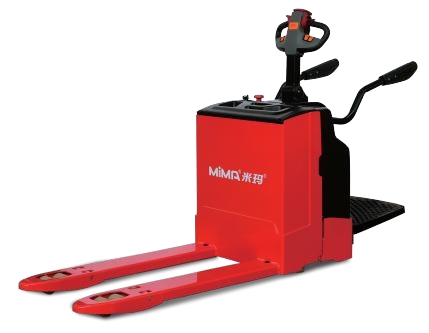

Stand-on Electric Pallet Truck - ME60/80

3.3 Electrical Control

• AC Drive System: Maintenance-free AC traction motor provides responsive acceleration, precise speed control, and regenerative braking for extended battery life.

• Integrated Control Handle: Ergonomic multi-function control handle manages travel direction, speed, lifting, lowering, and horn - all within fingertip reach.

• Chint Electrical Components: Industry-renowned Chint contactors, relays, and circuit breakers ensure reliable performance and easy maintenance.

• On-Board Charger: Built-in intelligent battery charger with overcharge protection, compatible with standard 220V power outlets for convenient recharging.

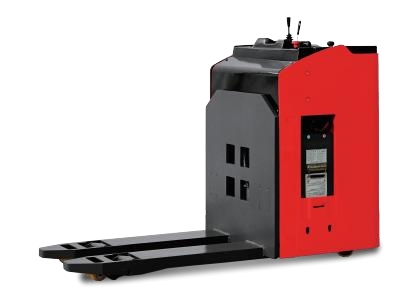

Seated Electric Pallet Truck - MEB60

4. Safety Features

5. Applications

Our electric pallet trucks are versatile material handling vehicles suitable for a wide range of industries:

• Warehouses and Distribution Centers

• Manufacturing Plants and Factories

• Retail and Wholesale Operations

• Third-Party Logistics (3PL) Providers

• Cold Storage and Refrigerated Warehouses

• Food and Beverage Distribution

• Pharmaceutical and Medical Supply

• Automotive Parts and Components

• Building Materials and Construction

• Bonded and Customs Warehouses

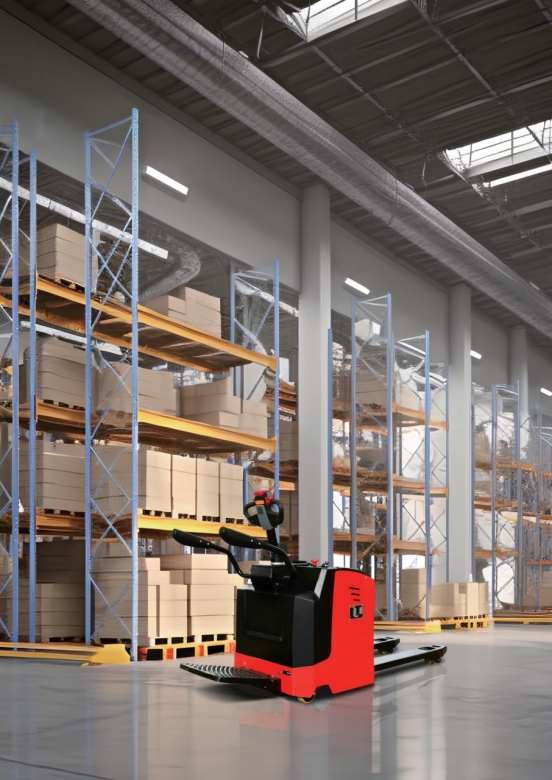

Electric Pallet Truck in Warehouse Operation

6. Why Choose Our Electric Pallet Truck

1. Versatile Operation Modes: Walkie, stand-on, and seated configurations match different operational requirements from light-duty to heavy-duty applications.

2. Six Model Series: Comprehensive range covering load capacities from 2000kg to 10000kg, matching any material handling requirement.

3. Zero Emission Low Noise: All-electric battery operation makes it ideal for indoor warehouses, cold storage, and environmentally sensitive facilities.

4. Efficient Pallet Transport: Electric drive and hydraulic lift system enable fast, efficient horizontal pallet transport with minimal physical effort.

5. Low Operating Costs: Electric power reduces fuel costs, maintenance expenses, and downtime compared to internal combustion equipment.

6. Easy Maintenance: Modular component design with accessible service points reduces downtime and lowers total cost of ownership.

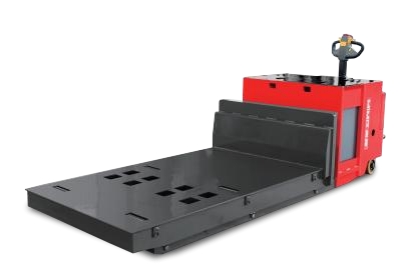

Seated Electric Pallet Truck - ME100

7. After-Sales Service

1-Year Whole Machine Warranty - Free replacement for any quality-related defects during the warranty period.

• Warranty Period: 1 year covering the entire machine (hydraulic system, structure, electrical components, battery).

• Response Time: 24-hour technical support response for all international customers.

• Spare Parts: Lifetime supply of original spare parts at factory cost after warranty expires.

• Operation Guidance: Detailed user manual plus remote video training for operators and maintenance personnel.

• Custom Packaging: Export-standard wooden crate packaging suitable for sea freight and long-distance transport.

Hangzhou Chengying Import And Export Co., Ltd. - Your trusted partner in material handling equipment.
