Self-Propelled Scissor Lift Platform - Product Brochure
1. Product Overview
The Self-Propelled Scissor Lift Platform is a versatile aerial work equipment designed for indoor and outdoor maintenance, installation, and cleaning tasks. Featuring an integrated self-propelled design with built-in battery power, it requires no external power supply or towing - one operator can easily control forward, backward, steering, variable speed walking, and lifting operations.
Our scissor lifts offer lifting heights from 4m to 13.8m with load capacities of 230kg to 450kg. The foldable guardrail design allows passage through standard doorways and elevators, making it ideal for confined spaces and multi-floor operations.
Core Value: Improve aerial work efficiency by up to 70%, reduce labor costs, and eliminate safety risks associated with ladders and scaffolding.

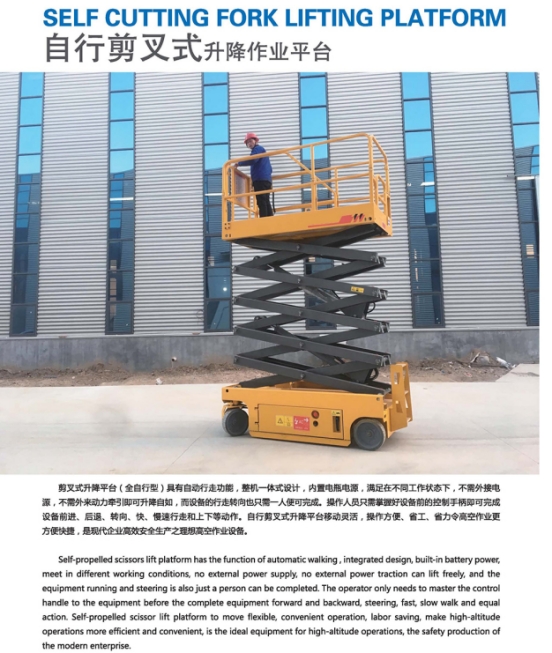

Self-Propelled Scissor Lift - Working at Height
2. Specifications and Model Selection
We offer 9 standard configurations (Model A-I) covering lifting heights from 4m to 13.8m, including mini and narrow versions for confined spaces. Custom specifications are available upon request.
Option | Model | Platform Size | Load Capacity | Lifting Height | Dimension (Guardrail Up) | Dimension (Guardrail Down) | Weight |
A | GTJZ04 | 1300x680 mm | 230 kg | 4 m | 1450x720x2010 mm | 1450x720x1620 mm | 900 kg |
B | GTJZ4.5 | 1390x740 mm | 230 kg | 4.5 m | 1540x780x2100 mm | 1540x780x1690 mm | 1150 kg |
C | GTJZ Mini 06 | 1670x740 mm | 230 kg | 5.8 m | 1810x780x2100 mm | 1810x780x1700 mm | 1300 kg |
D | GTJZ06 | 2270x1110 mm | 450 kg | 6 m | 2430x1170x2250 mm | 2430x1170x1685 mm | 2200 kg |
E | GTJZ Narrow 08 | 2270x850 mm | 230 kg | 8 m | 2430x870x2300 mm | 2430x870x1950 mm | 2090 kg |
F | GTJZ08 | 2270x1110 mm | 450 kg | 8 m | 2430x1170x2360 mm | 2430x1170x1810 mm | 2300 kg |
G | GTJZ10 | 2270x1110 mm | 320 kg | 10 m | 2430x1170x2500 mm | 2430x1170x1935 mm | 2600 kg |
H | GTJZ12 | 2270x1110 mm | 320 kg | 11.8 m | 2430x1170x2620 mm | 2430x1170x2060 mm | 2880 kg |
I | GTJZ14 | 2640x1130 mm | 230 kg | 13.8 m | 2800x1270x2760 mm | 2800x1270x2130 mm | 3600 kg |
Selection Guide: Choose Mini/Narrow models for confined spaces and doorways; choose 450kg capacity models (GTJZ06/08) for two-person operations with tools; choose GTJZ10/12/14 for high-altitude maintenance above 10m.

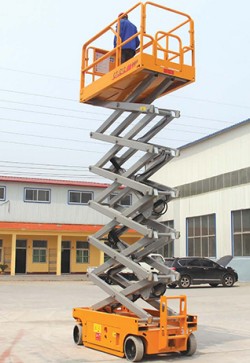

Scissor Lift - Fully Extended Side View
3. Core Configuration and Craftsmanship
3.1 Mechanical Structure
• High-Strength Scissor Arms: Q355B high-strength manganese steel scissor structure with precision welding, ensuring stable lifting and long service life.
• Foldable Guardrail: Quick-release guardrail design reduces overall height when folded, allowing passage through standard doorways and elevators.
• Non-Marking Tires: Solid polyurethane wheels protect indoor floors while providing excellent traction and durability.
• Extension Platform: Slide-out extension deck increases working area and reach (available on selected models).

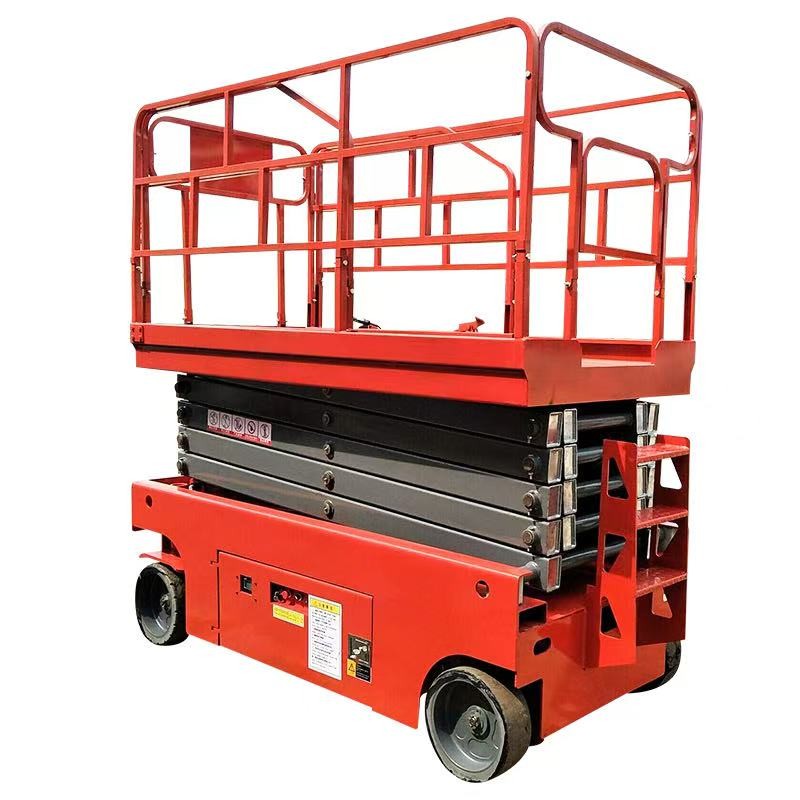

Scissor Lift - Folded Position with Guardrail
3.2 Hydraulic System
• Built-in Battery Power: Maintenance-free lead-acid battery pack provides 6-8 hours of continuous operation on a single charge.
• Hydraulic Power Unit: Compact, quiet hydraulic power pack delivers smooth and precise lifting and lowering.
• Double Cylinder Design: Dual hydraulic cylinders ensure synchronized, stable lifting with minimal wobble at height.
• Pressure Relief Valve: Built-in overload protection prevents lifting beyond rated capacity.
3.3 Electrical Control
• Integrated Control Handle: Single joystick controls driving, steering, lifting, and lowering - intuitive operation for any user.
• Chint Electrical Components: Industry-renowned Chint contactors and relays ensure reliable performance.
• On-Board Charger: Built-in intelligent charger with overcharge protection, compatible with 110V/220V power outlets.
• Emergency Stop Button: Red mushroom-head button instantly halts all movement in emergency situations.

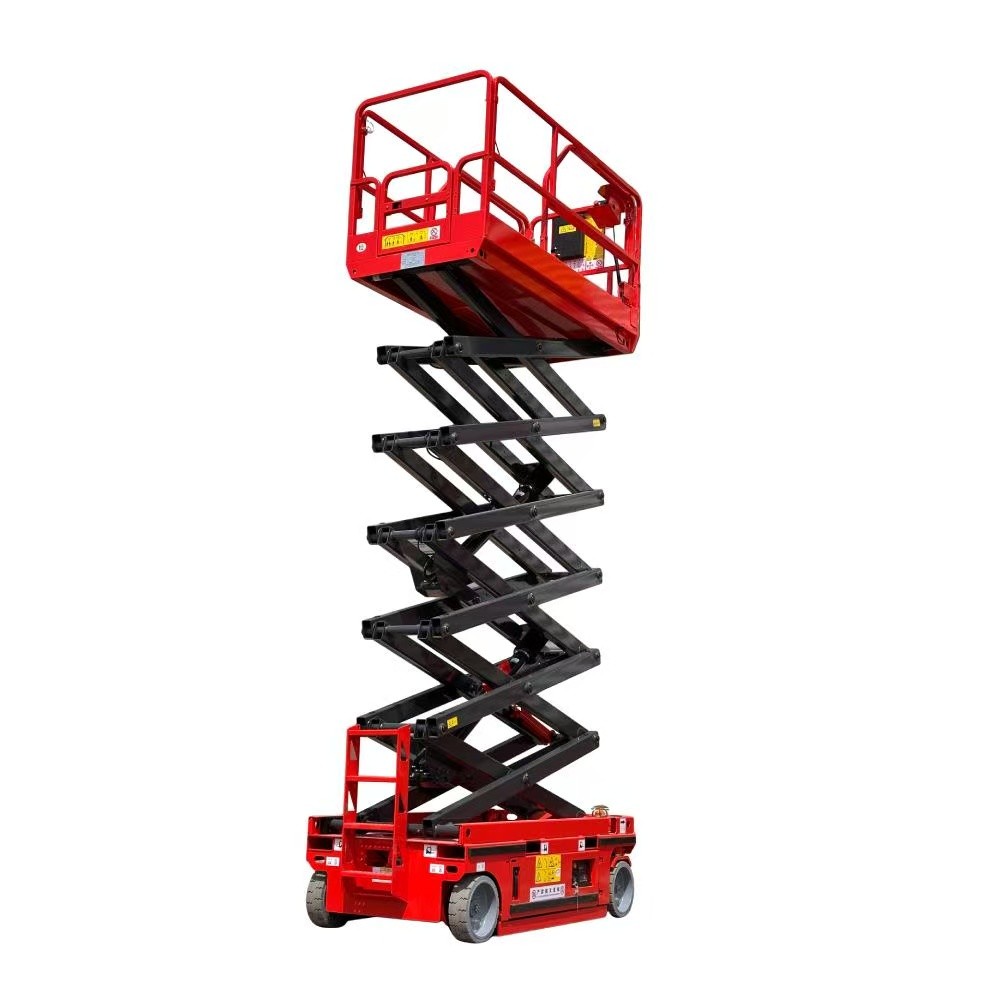

Self-Propelled Scissor Lift - Product Overview
4. Safety Features
Safety Feature | Description |
Overload Protection | Pressure relief valve automatically limits lifting when load exceeds rated capacity |
Emergency Stop | Red mushroom-head button on both platform and base immediately halts all movement |
Check Valve Locking | Hydraulic check valve holds platform position during power failure or hose rupture |
Safety Maintenance Struts | Mechanical support legs lock scissor arms during maintenance and inspection |
Foldable Guardrail | Full-height guardrails with mid-rails and toe boards prevent falls from platform |
Anti-Slip Platform | Checkered steel plate surface prevents foot slippage during operation |
Tilt Protection | Automatic alarm and lift lock when machine operates on uneven ground beyond safe angle |
Emergency Lowering | Manual descent valve allows controlled lowering in case of power failure |
5. Applications
Our self-propelled scissor lift platforms are widely used across industries requiring efficient and safe aerial work:
• Warehouse and Logistics Center Maintenance
• Factory Equipment Installation and Repair
• Shopping Mall and Supermarket Lighting Maintenance
• Hotel and Office Building Cleaning
• Airport and Station Facility Maintenance
• Hospitals and Schools Interior Renovation
• Exhibition and Event Setup
• HVAC System Installation and Service
• Painting and Decorating Work
• Signage and Lighting Installation
6. Why Choose Our Scissor Lift
1. Self-Propelled Design: Built-in battery and drive system allow one-person operation, no external power or towing needed.
2. Compact and Maneuverable: Mini and narrow models fit through standard doorways and elevators for multi-floor use.
3. Safety First: 8-layer safety protection system including overload, tilt, and emergency lowering features.
4. Low Noise and Zero Emission: Electric battery power makes it ideal for indoor use in offices, hospitals, and malls.
5. Non-Marking Tires: Solid polyurethane wheels protect delicate indoor floors from damage.
6. Easy Maintenance: Integrated design with accessible components reduces downtime and service costs.
7. After-Sales Service
1-Year Whole Machine Warranty - Free replacement for any quality-related defects during the warranty period.
• Warranty Period: 1 years covering the entire machine (hydraulic system, structure, electrical components, battery).
• Response Time: 24-hour technical support response for all international customers.
• Spare Parts: Lifetime supply of original spare parts at factory cost after warranty expires.
• Operation Guidance: Detailed user manual plus remote video training for operators.
• Custom Packaging: Export-standard wooden crate packaging suitable for sea freight.
Hangzhou Chengying Import And Export Co., Ltd. - Your trusted partner in material handling equipment.
