Multi-Directional Forklift - Product Brochure

1. Product Overview

The Multi-Directional Forklift is a specialized material handling vehicle designed for transporting long and bulky loads such as steel pipes, aluminum profiles, timber, boards, and bar materials. Featuring a unique four-directional drive system that allows travel in forward, backward, left, and right directions, combined with a side-shifting fork carriage, it enables efficient handling and storage of long loads in very narrow aisles.

We offer six model series covering stand-on and seated configurations, with load capacities from 2500kg to 5000kg and lifting heights up to 8500mm. All models are battery-electric powered, providing zero-emission, low-noise operation suitable for both indoor warehouses and outdoor yards.

Core Value: Handle long and bulky loads in narrow aisles, reduce required aisle width by up to 40%, and eliminate the need for turning maneuvers when storing long materials.

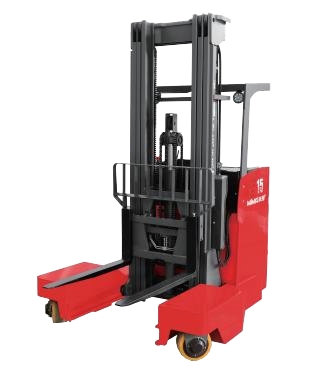

Stand-on Multi-directional Forklift - MQ25

2. Specifications and Model Selection

We offer six model series covering different operation styles, load capacities, and drive configurations. Custom specifications are available upon request.

Selection Guide: Choose stand-on models (MQ25/MQB30) for operations requiring frequent entry/exit and shorter shifts; choose seated models (MQZ25/MQK30/MQC series/MQC30D) for long-shift operations requiring operator comfort; choose MQC series for heavy loads up to 5000kg; choose 4-directional models (MQB30/MQC30D) for applications requiring precise lateral positioning in very narrow aisles.

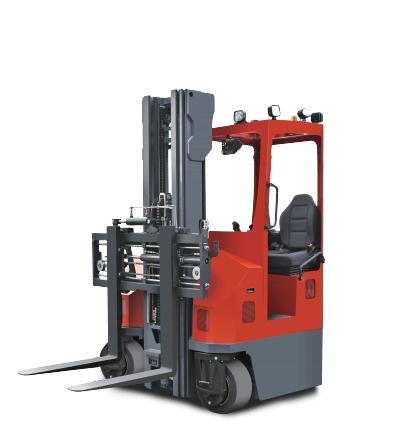

Seated Multi-directional Forklift - MQZ25

3. Core Configuration and Craftsmanship

3.1 Mechanical Structure

• Four-Directional Drive System: Patented multi-wheel steering system enables travel in forward, backward, left, and right directions, allowing long-load handling in narrow aisles without turning.

• Side-Shifting Fork Carriage: Hydraulic side-shift mechanism allows forks to move left and right independently, enabling precise load positioning without repositioning the vehicle.

• High-Strength Mast: Heavy-duty duplex/triplex mast with precision roller guides ensures stable lifting up to 8.5m with minimal deflection and load sway.

• Reinforced Chassis: Robust steel frame construction with extended wheelbase provides excellent stability for long and bulky loads during lifting and travel.

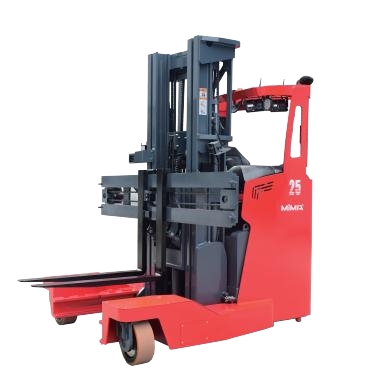

Seated Multi-directional Counterbalance Forklift - MQK30

3.2 Hydraulic System

• Precision Hydraulic Unit: Compact, high-efficiency hydraulic power pack delivers smooth, controlled lifting, lowering, and side-shifting with proportional valve technology.

• Dual Cylinder Lifting: Symmetric hydraulic cylinders ensure synchronized mast lifting, preventing load tilt at maximum height.

• Pressure Relief Valve: Built-in overload protection prevents lifting beyond rated capacity, protecting both operator and equipment.

• Check Valve Locking: Hydraulic check valves hold the mast position in case of power failure or hose rupture, preventing uncontrolled descent.

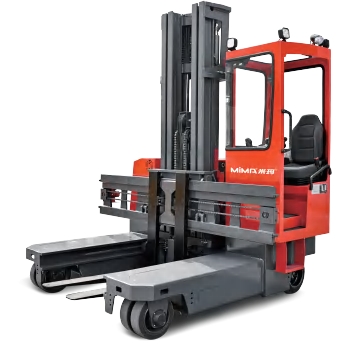

Seated Multi-directional Forklift - MQC Series

3.3 Electrical Control

• AC Drive System: Maintenance-free AC traction motors (multi-motor configuration) provide responsive acceleration, precise speed control in all directions, and regenerative braking for extended battery life.

• Integrated Control Console: Ergonomic operator station with multi-function control handle manages travel in all directions, steering, lifting, lowering, and fork side-shift - all within fingertip reach.

• Chint Electrical Components: Industry-renowned Chint contactors, relays, and circuit breakers ensure reliable performance and easy maintenance.

• On-Board Charger: Built-in intelligent battery charger with overcharge protection, compatible with standard 220V/380V power outlets for convenient recharging.

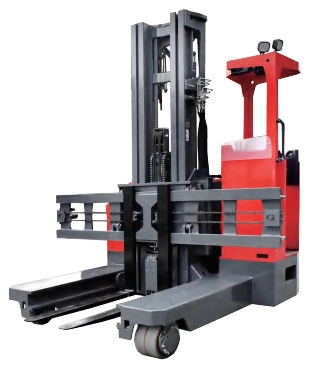

Stand-on 4-directional Forklift - MQB30

4. Safety Features

5. Applications

Our multi-directional forklifts are essential equipment for handling long and bulky loads in narrow-aisle storage environments:

• Steel Pipe and Tube Distribution Centers

• Aluminum Profile and Extrusion Manufacturers

• Timber, Lumber, and Building Material Yards

• Glass and Sheet Metal Storage Facilities

• PVC Pipe and Plastic Profile Distributors

• Bar Stock and Metal Rod Suppliers

• Automotive Parts and Components Warehouses

• Aerospace and Aircraft Manufacturing

• Third-Party Logistics (3PL) Providers

• Bonded and Customs Warehouses

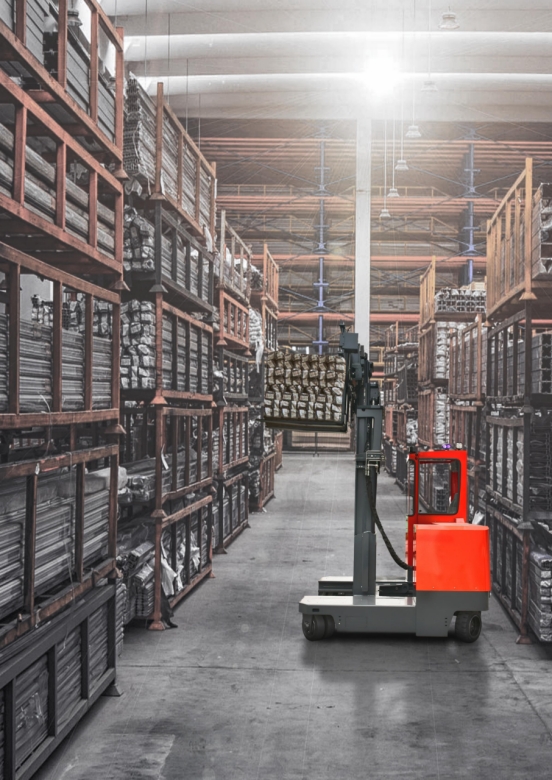

Multi-directional Forklift in Warehouse Operation

6. Why Choose Our Multi-Directional Forklift

1. Four-Directional Versatility: Unique multi-wheel steering system enables travel in all four directions, eliminating the need for turning maneuvers when handling long loads in narrow aisles.

2. Long Load Handling: Specifically designed for transporting and storing long and bulky materials such as pipes, profiles, timber, and boards that conventional forklifts cannot handle efficiently.

3. Maximize Storage Density: Reduce required aisle width by up to 40%, increasing warehouse storage capacity for long materials.

4. Six Model Series: Comprehensive range covering stand-on and seated configurations, load capacities from 2500kg to 5000kg, and multi-directional/4-directional drive systems.

5. Low Noise Zero Emission: All-electric battery operation makes it ideal for indoor warehouses, clean environments, and noise-sensitive facilities.

6. Easy Maintenance: Modular component design with accessible service points reduces downtime and lowers total cost of ownership.

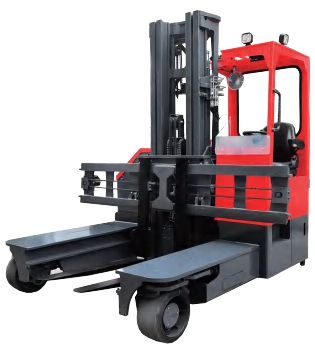

Seated 4-directional Forklift - MQC30D

7. After-Sales Service

1-Year Whole Machine Warranty - Free replacement for any quality-related defects during the warranty period.

• Warranty Period: 1 year covering the entire machine (hydraulic system, structure, electrical components, battery).

• Response Time: 24-hour technical support response for all international customers.

• Spare Parts: Lifetime supply of original spare parts at factory cost after warranty expires.

• Operation Guidance: Detailed user manual plus remote video training for operators and maintenance personnel.

• Custom Packaging: Export-standard wooden crate packaging suitable for sea freight and long-distance transport.

Hangzhou Chengying Import And Export Co., Ltd. - Your trusted partner in material handling equipment.
