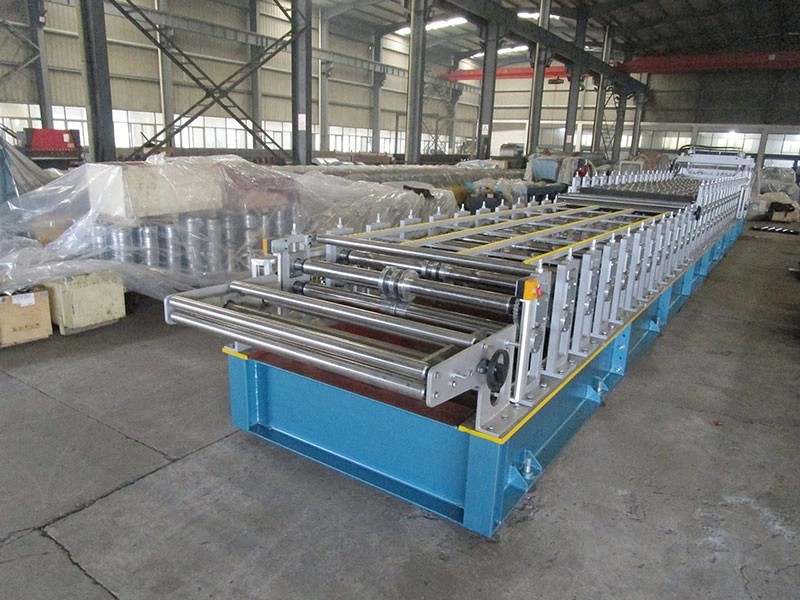

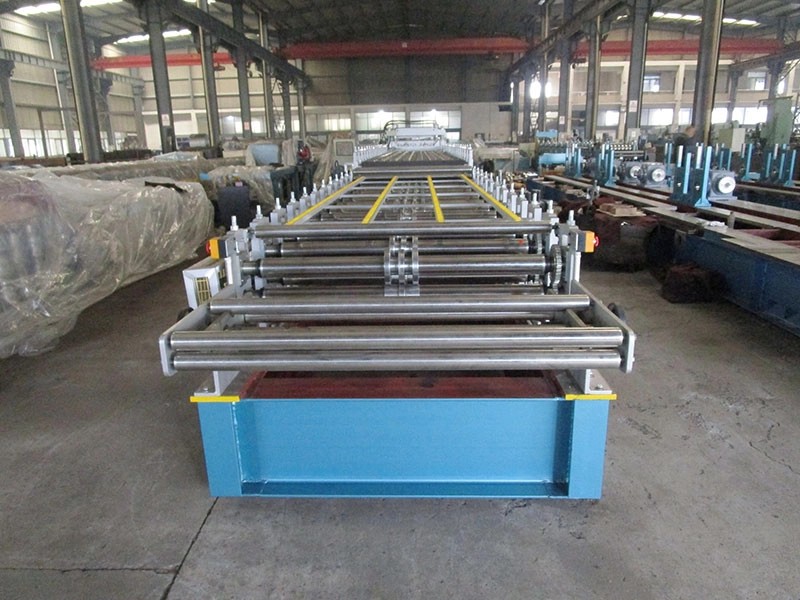

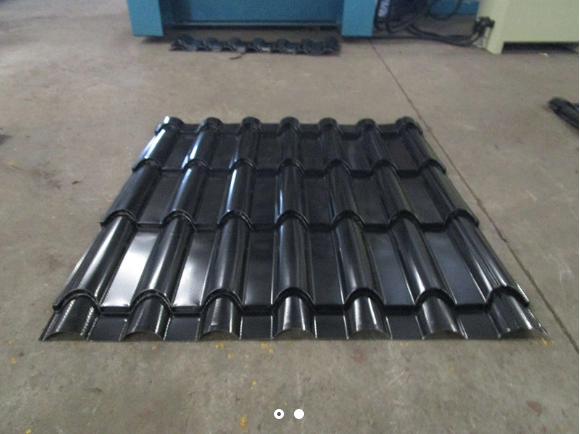

Double layer roll forming machine for glazed tile–style panels and corrugated sheets can produce decorative metal roofing profiles with a glazed tile appearance, along with standard corrugated roofing sheets.
This machine offers flexible production and is an ideal solution for suppliers seeking a compact system that can simultaneously serve both the residential architectural market and the industrial roofing sector, combining aesthetic appeal with practical performance. It is commonly used in residential housing, villas, rural buildings, and renovation projects.
Fence Roll Forming Machine
Fence Roll Forming Machine
Machine Components & Specifications |
No. | Components | Qty. | Key Parameters |
1 | Manual Decoiler / Electric Decoiler | 1 Set | Capacity: 5 tons |
Suitable Coil ID:508 mm |
Suitable Coil Max OD:1000 mm |
| 2 | Guiding Unit | 1 Set |
|
3 | Roll-Forming System | 1 Set | Number of forming stands Subject to the final design |
Motor Power: 1 x 5.5kW |
|
| 4 | Pressing Unit | 1 Set |
|

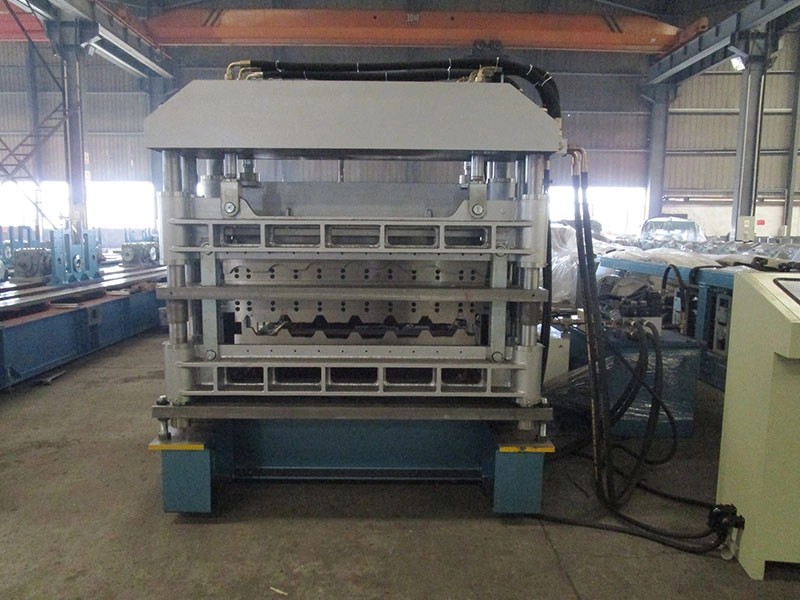

5 | Hydraulic Stop-and-Cut Unit | 1 Set |
|
6 | Hydraulic Power Unit | 1 Set | Power:1 x 5.5kW |
7 | PLC Control System | 1 Set | Delta (Taiwan) / Mitsubishi(Janpan) |
8 | Run-Out Table(Non-powered) | 2 Pcs | Total is 3 meters |
| Coil Technical Parameters |
| No. | Parameters | Details |
| 1 | Raw Material | PPGI |
| 2 | Material Thickness | 0.3-0.8 mm / 0.5-0.6mm |
| 3 | Coil Width | Subject to the market requirements of the client |
| 4 | Yield Strength | 235-350MPa |
