Application Scenario
Double layer roll forming machine for floor decking is specifically developed for applications that require the production of both structural floor deck profiles and roofing panels. It is a heavy-duty configuration within the double layer roll forming machine range, capable of producing structural steel deck profiles as well as standard roofing sheet profiles on the same machine. This model is suitable for multi-story steel structure buildings, industrial plants, and composite floor systems. It is equipped with reinforced shafts and a high-power drive system, enabling it to process the thicker materials typically required in multi-story steel structure construction and to meet higher forming force demands.

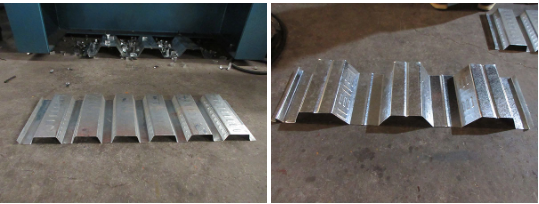

Typical Profiles

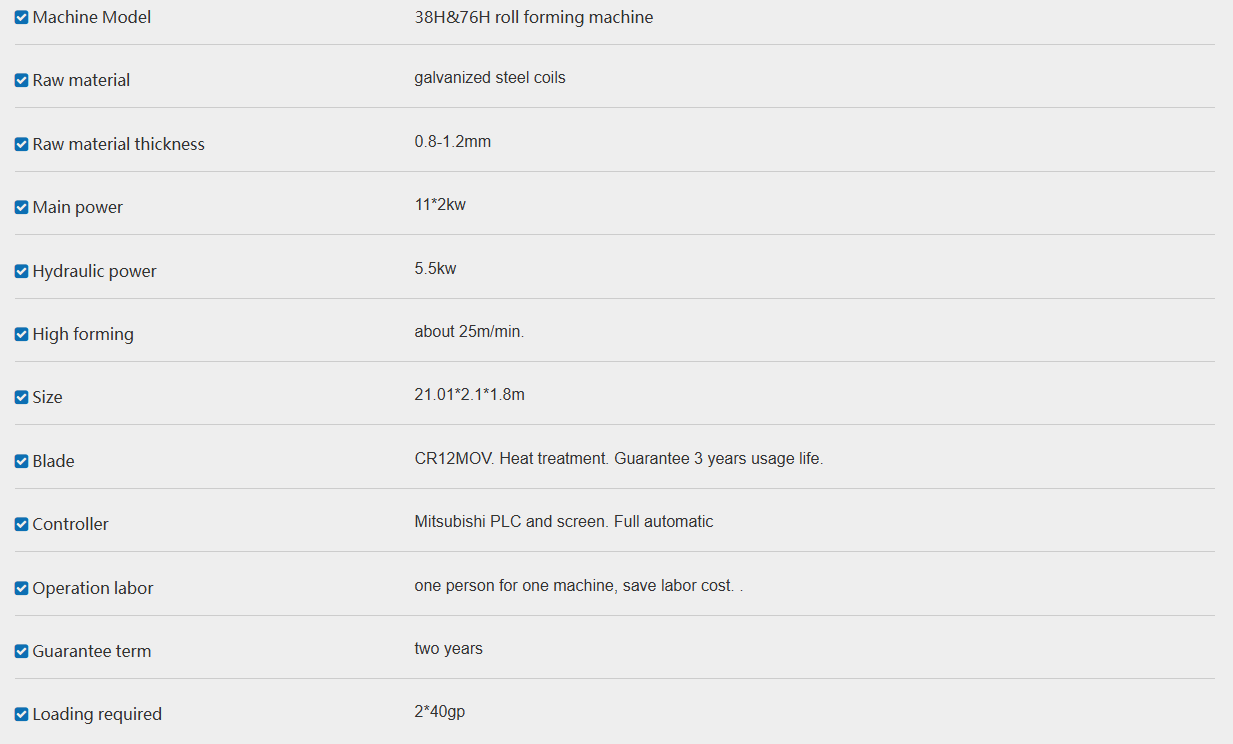

Main Technical Parameters
| Machine Components & Specifications |
| No. | Components | Qty. | Key Parameters |
| 1 | Manual Decoiler / Electric Decoiler | 1 Set | Capacity: 5 tons |
| Suitable Coil ID:508 mm |
| Suitable Coil Max OD:1000 mm |
| 2 | Roll-Forming System | 1 Set | Number of forming stands: approx. 22(Subject to the final design) |
| Motor Power: 11x 2kW(Subject to the final design) |
| Forming Speed: 18-20m/min |
| 3 | Hydraulic Stop-and-Cut Unit | 1 Set | Cutting Blade material: Cr12MoV tool steel |
| 4 | Hydraulic Power Unit | 1 Set | Power:1 x5.5kW |
| 5 | PLC Control System | 1 Set | Delta (Taiwan) / Mitsubishi(Janpan) |
| 6 | Run-Out Table(Non-powered) | 2 Pcs | Total is 3 meters |
| 7 | weight | 16500 kg |
| 8 | Size | 26*1.8*1.5 m(Subject to the final design) |
| Coil Technical Parameters |
| No. | Parameters | Details |
| 1 | Raw Material | PPGI/Aluminum Coils |
| 2 | Material Thickness | 0.8-1.2 mm |
| 3 | Coil Width | Subject to the market requirements of the client |
| 4 | Yield Strength | 235MPa（Customizable） |
Main Technical Parameters

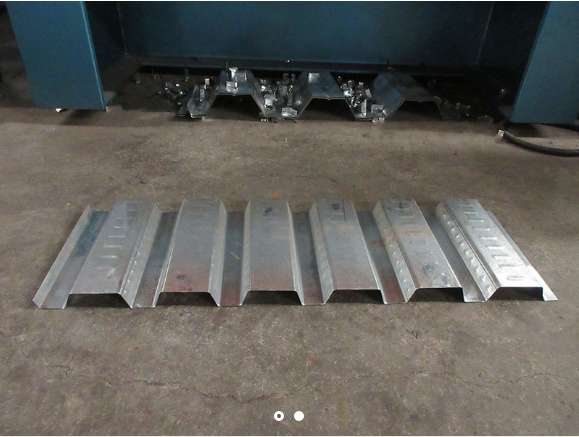

1. Sample
2.Forming System Of Double Layer Roll Forming Line
3.Bearings Inside Rollers

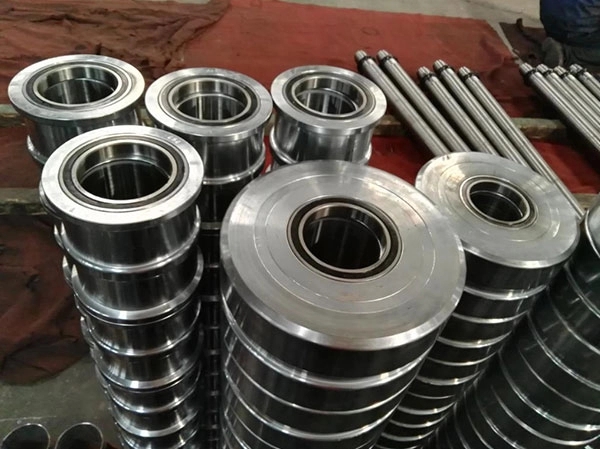

Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life.
More important, machine can get more precise sheet because of bearing designing.

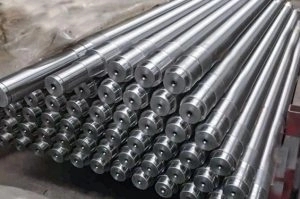

4.Machine Shafts For Rollers
Shaft material is No.45 steel with diameter 82mm, strong and durable.
Shafts are processed for three times from rough machining to grinder machining, to ensure the precision of final product.
Advantage Of This Machine
Quick Details

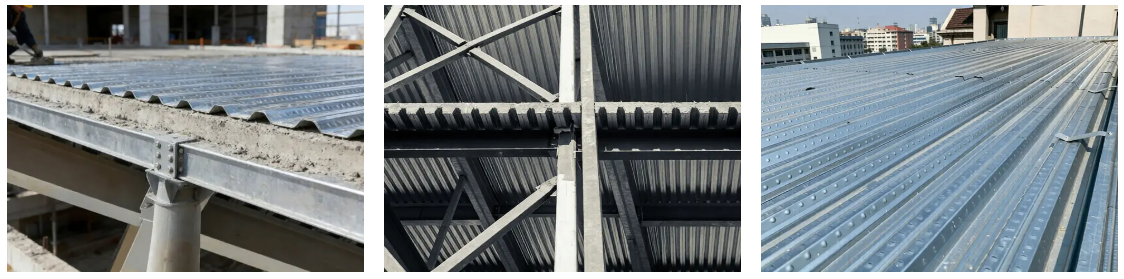

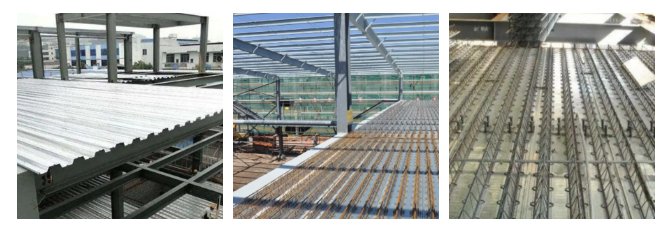

Application of Double Layer Roll Forming Machine for Floor Decking
