Brief introduction of high speed roof step tile roll forming machine for sale:

Technical Parameters of high speed glazed roof step tile roll forming machine:

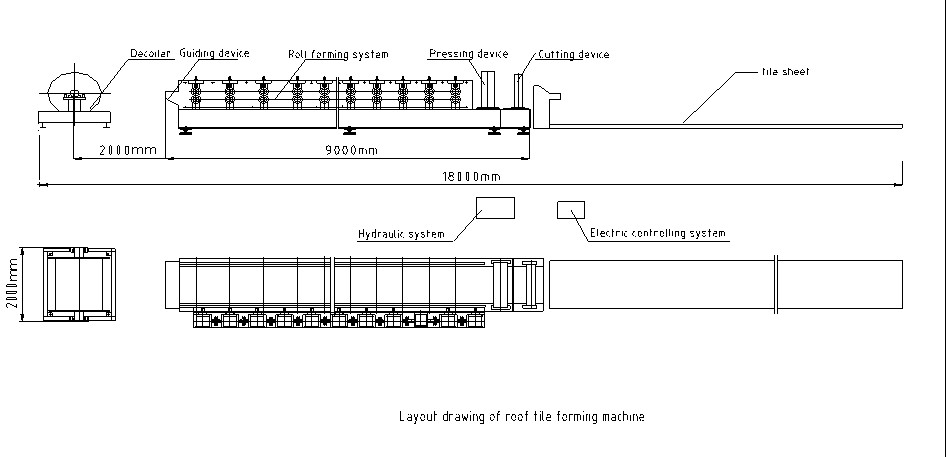

Machine components of roofing step tile roll forming machine:

Tile working processing display

Decoiling the sheet→Guiding sheet →Roll forming→Pressing sheet→Measure length and cutting the sheet

DESCRIPTION

Components description of powerful step tile roll forming machine for low price

1.High Accuracy Shafts

Solid shafts dia.72mm.

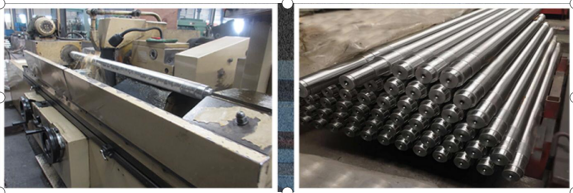

Solid steel shafts are being tooling twice with grinding machine to ensure final precision. Guarantee buyer get high accuracy sheet from Zhongyuan made machine.

2.Hard Forming rollers with high precision

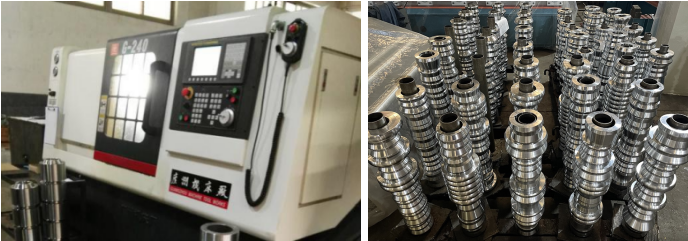

Each forming roller use CNC machine to polish and machining into designed rollers shape,it can improve rollers accuracy.And planted 0.03-0.05mm hard chrome to make sure machine running more than 15years+ for you.

3.Machine frame is processed on surface by 10m planning machine.

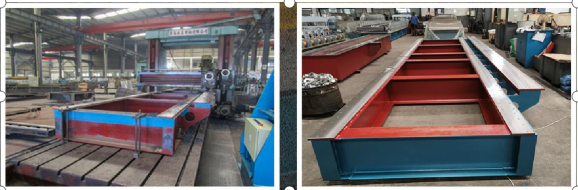

Machine frame made from H400 type steel by welding,planned on surface to guarantee precision.

All the screw bolts with grade 8.8(Some other factories use low grade4.8) to ensure fix the machine structure tightly and long life during the machine long time running. Side wall thickness: 40mm

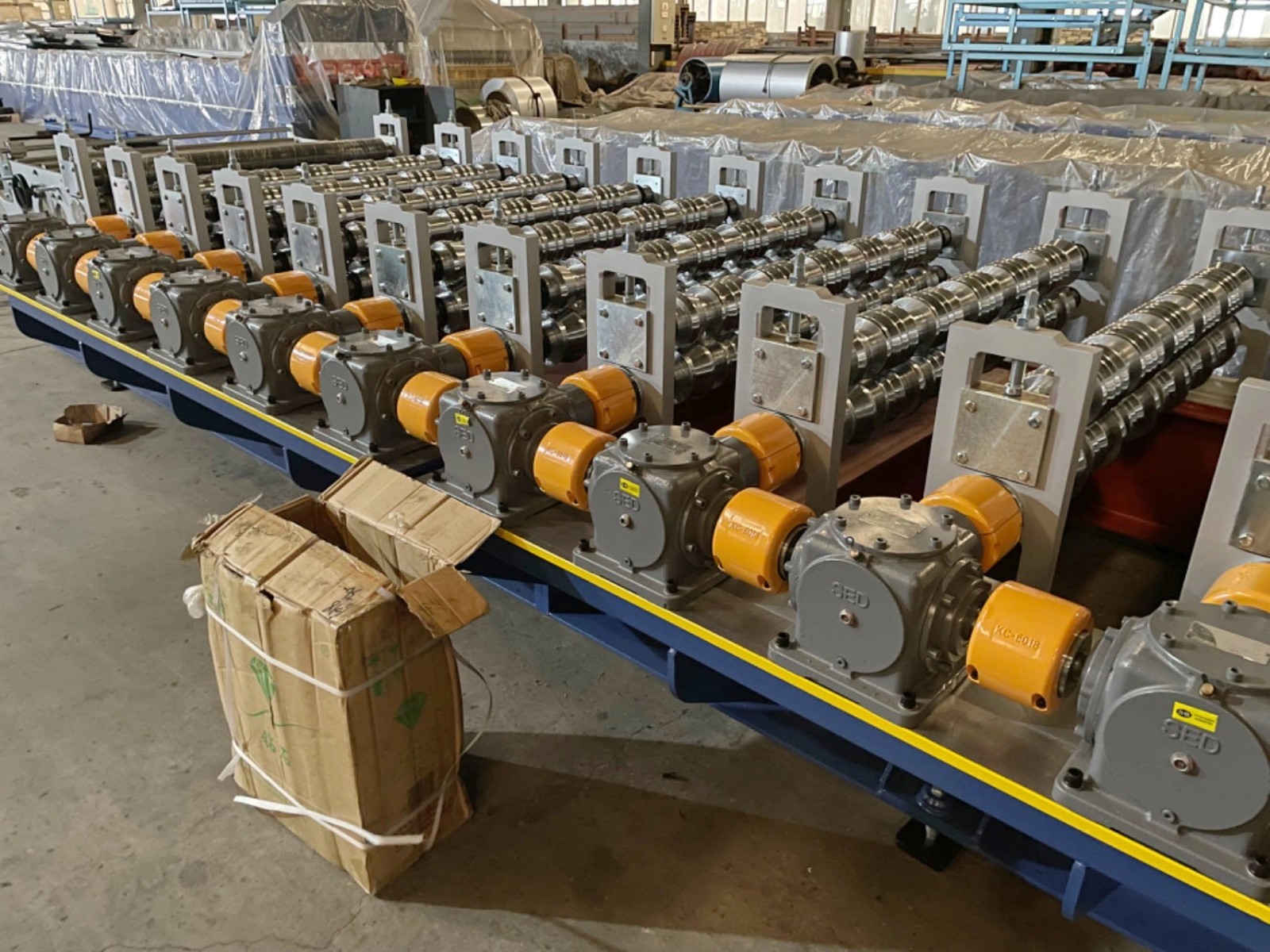

Motor Driving, Worm gear driving transmission, about 18-steps stations to form

Main Motor=5.5kw

Production speed:about 6m/min.

4.Hydraulic Cutting

1)Adopts post cutting, Stop to cut;

2)  The cutting blade material is Cr12Mov. with quenched treatment.

2)  Adopts welded frame for good rigidity.

4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.

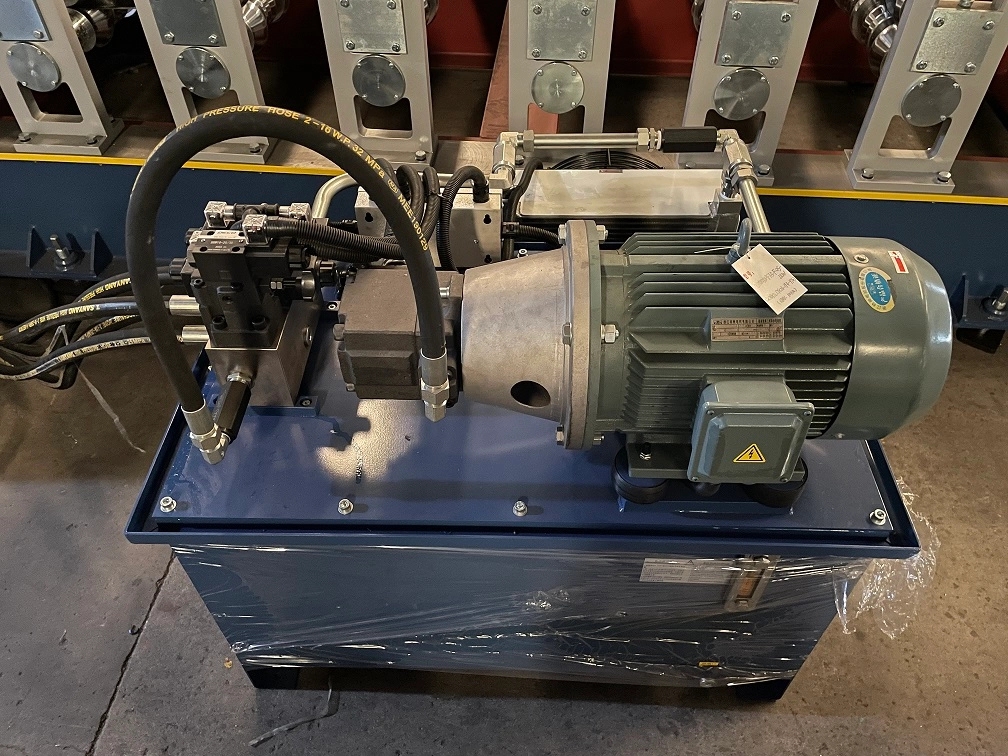

5)  The power of cutting is provided by hydraulic station.

6)  The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the product automatically. Finish this action, machine will run again continuously.

5.PLC Control System

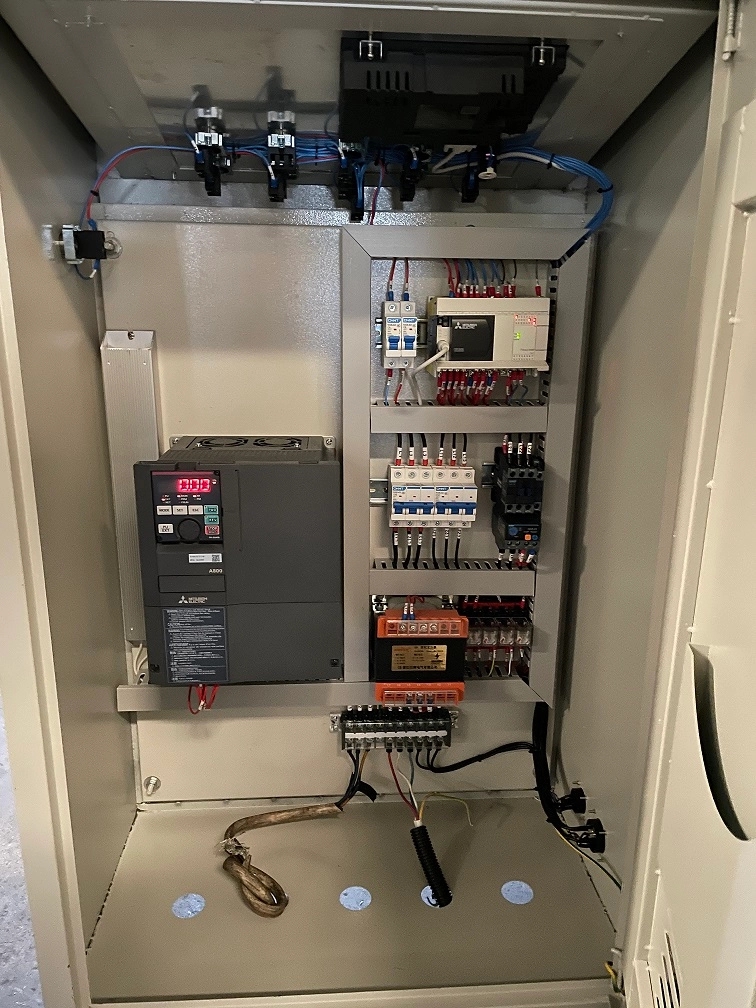

1) This system uses Mitsubishi PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

2) Mitsubishi converter adjusts speed technology, realize the automatic production.

3)  Touch screen is input and canceled the working data.

4)  Friendly man-machine interface system can be set batches to the workpiece, length, quantity, etc.

5)  Encoder count, having function of count and measuring length.

6)  Suitable power voltage:380V/50Hz, 3 phase(can be designed according to buyer’s requirement)

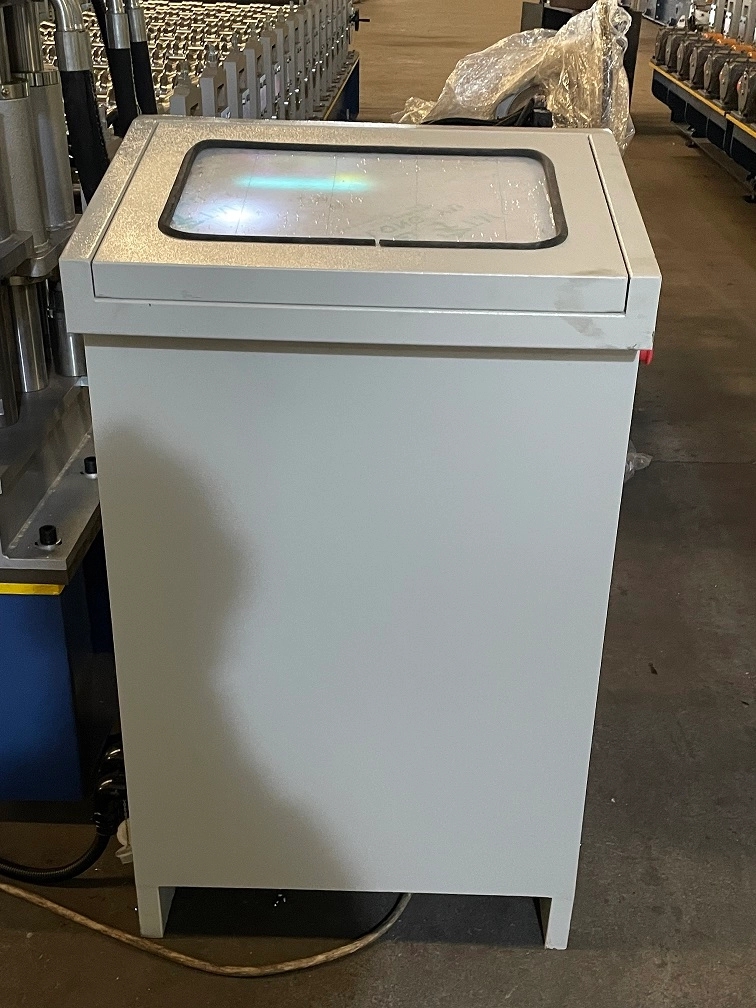

System outer form reference:

APPLICATION

Product application of step tile roll forming machine

In order to satisfy various customer requirements, we design and manufacture step tile roll forming machine in different specs, models and configurations.

Step tile roll forming machine Application Example

PACKAGING

Packaging Details of metal glazed step tile roll forming machine

1. One *40GP container for loading one set of glazed step tile roll forming machine manufacture with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.

Delivery Time

Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.
