Application of Floor Decking Roll Forming Machine
The equipment can produce most mainstream floor deck profiles on the market, including B Deck, C Deck, W Deck, N Deck, YX74-203-812, and Losacero, covering both standard and non-standard designs. In addition, we offer customized solutions based on specific project requirements, including profile design, forming configuration, and complete production line planning.

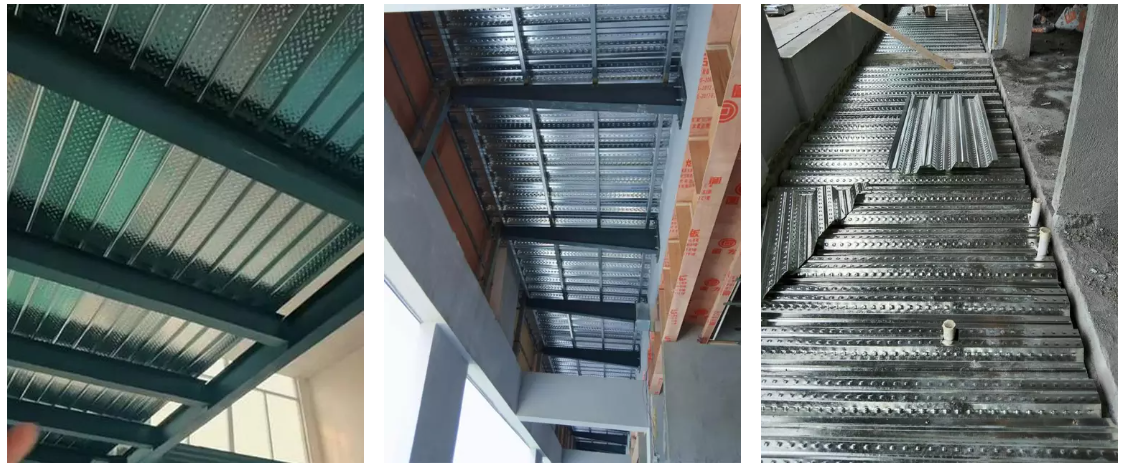

Our solutions serve a wide range of applications, from industrial plants and large-span single-story buildings to office buildings, high-rise, and super high-rise structures. Whether for industrial buildings without suspended ceilings or for commercial mezzanines and office spaces with dense MEP layouts, we can provide matched equipment solutions tailored to different structural and construction needs.
Technical Solution Overview
| Machine Components & Specifications |
| No. | Components | Qty. | Key Parameters |
| 1 | Manual Decoiler | 1 Set | Capacity:7 tons |
| 2 | Guiding Unit | 1 Set |
|

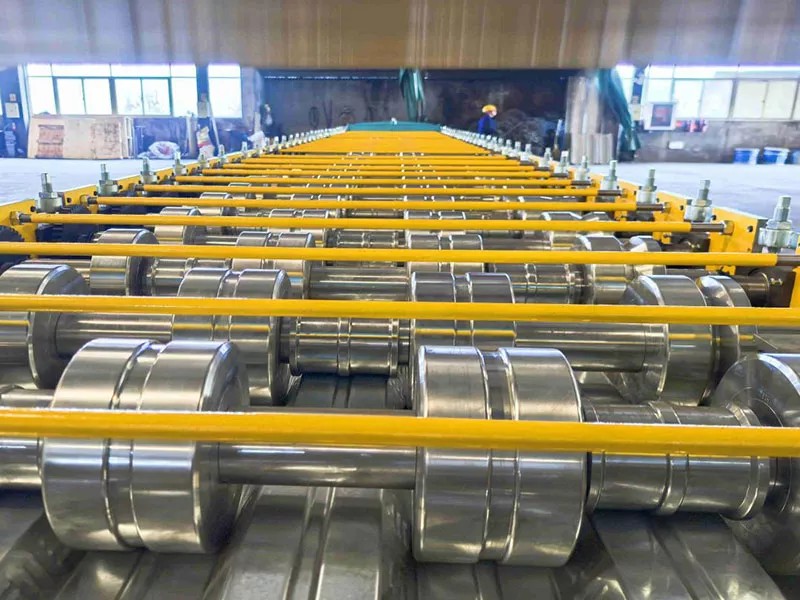

| 3 | Roll-Forming System | 1 Set | Number of forming stands subject to the final design |
| Motor Power: 2 x 11kW |
| 4 | Hydraulic Stop-and-Cut Unit | 1 Set |
|
| 5 | Hydraulic Power Unit | 1 Set | Power: 5.5 kW |

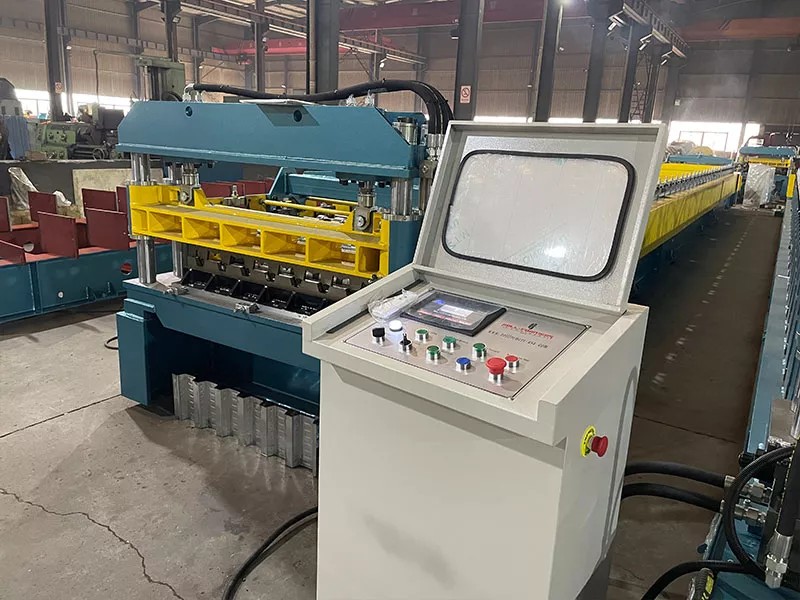

| 6 | Network PLC Control System | 1 Set | Delta (Taiwan) / Mitsubishi(Janpan) |
| 7 | Run-Out Table (Non-Powered) | 2 Pcs | Total : 3 meters |
| Coil Technical Parameters |
| Parameters | Details |
| Raw Material | Galvanized steel coil |
| Material Thickness | 0.8-1.2 mm |
| Coil Width | Subject to the market requirements of the client |
| Yield Strength | 235-300MPa |

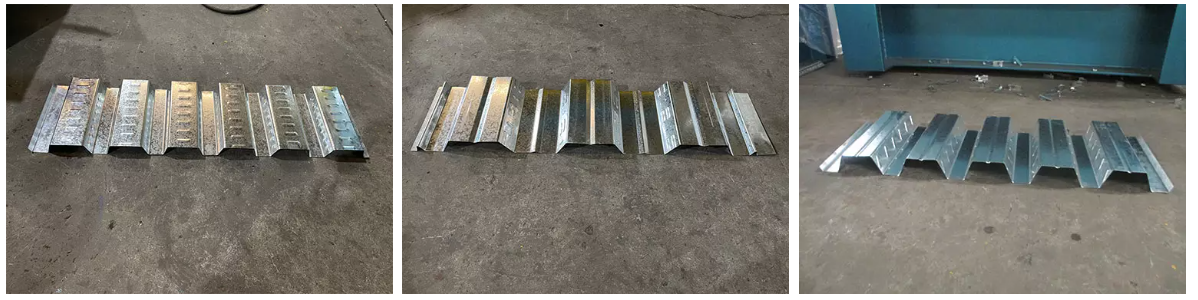

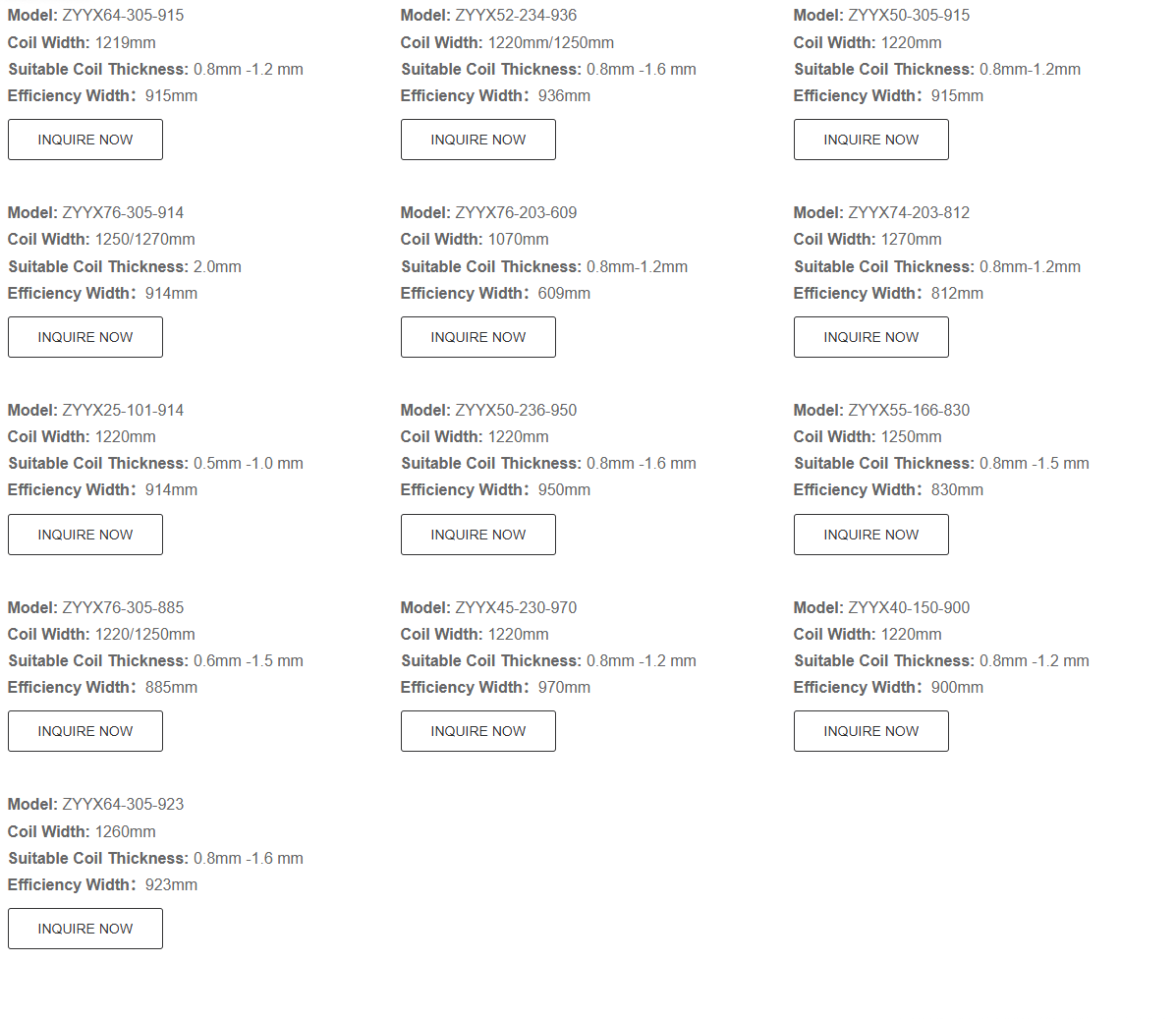

Typical Profiles
