Fence Roll Forming Machine
Application Scenario

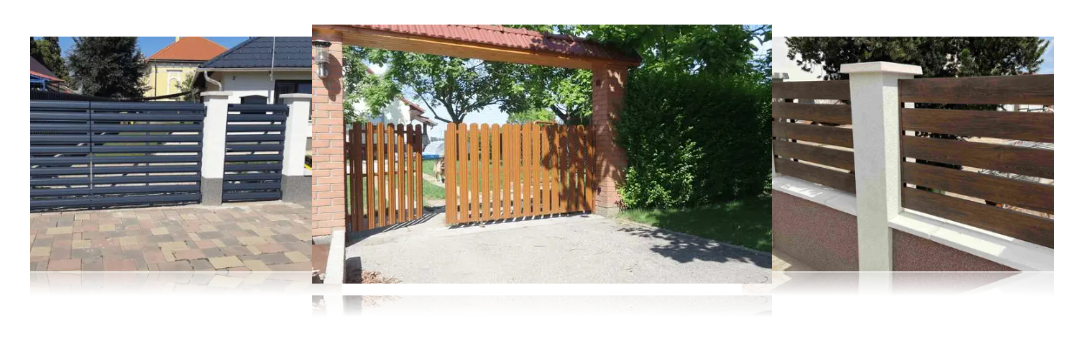

Metal fencing is an essential protective and decorative solution in modern construction, industrial facilities, agriculture, and municipal engineering projects. Compared with traditional wooden or plastic fences, metal fences offer superior weather resistance, higher structural strength, and a longer service life with reduced maintenance requirements.

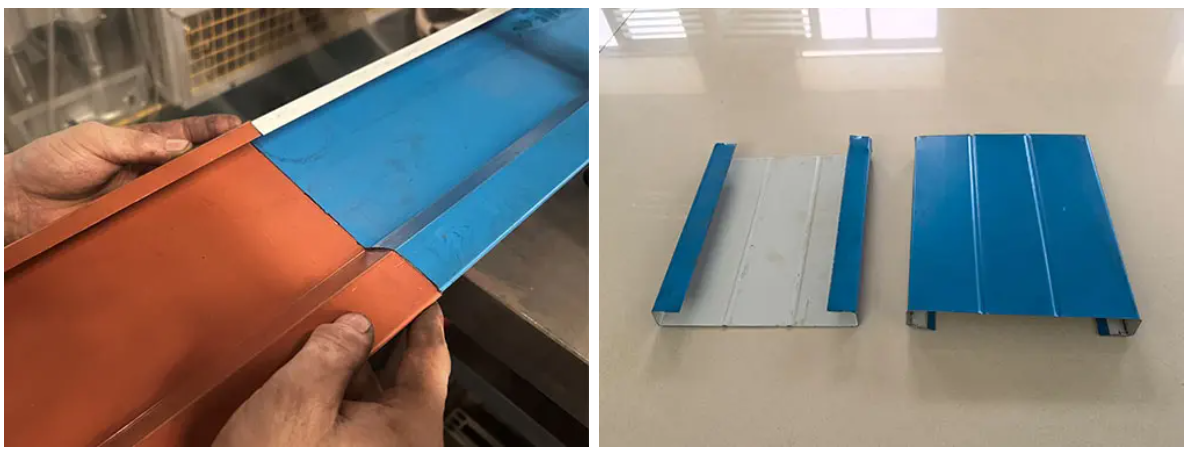

In response to the continuously evolving fencing market, Zhongyuan focuses on providing high-precision, high-speed, and automated fence roll forming solutions. Through automated cold roll forming processes, our fence roll forming machines enable continuous and precise production of a wide range of metal fence profiles and components, including but not limited to corrugated metal fence panels, horizontal fence slats, vertical metal slat profiles, and metal louver fence components. This ensures stable and consistent forming quality, providing a reliable foundation for subsequent fence system assembly.
Main Technical Parameters
| Machine Components & Specifications |
| No. | Components | Qty. | Key Parameters |
| 1 | Manual Decoiler / Electric Decoiler | 1 Set | Capacity: 5 tons |
| Suitable Coil ID:508 mm |
| Suitable Coil Max OD:1000 mm |
| 2 | Guiding Unit | 1 Set |
|
| 3 | Roll-Forming System | 1 Set | Number of forming stands: approx. 14(Subject to the final design) |
| Motor Power: 1 x 4 kW |
| Working Speed:(Subject to the final design) |
| 4 | Pressing Unit | 1 Set |
|
| 5 | Hydraulic Stop-and-Cut Unit | 1 Set | Cutting Blade material: Cr12MoV tool steel |
| 6 | Hydraulic Power Unit | 1 Set | Power:1 x 7.5kW |
| 7 | PLC Control System | 1 Set | Delta (Taiwan) / Mitsubishi(Janpan) |
| 8 | Run-Out Table(Non-powered) | 2 Pcs | Total is 3 meters |
| Coil Technical Parameters |
| No. | Parameters | Details |
| 1 | Raw Material | Pre-painted steel coils |
| 2 | Material Thickness | 0.3-0.7 mm |
| 3 | Coil Width | 155-156mm |
| 4 | Yield Strength | 235MPa |
| 5 | Size | 6.81*0.8*1.8m |
| 6 | weight | 3355kg |
